Parts list

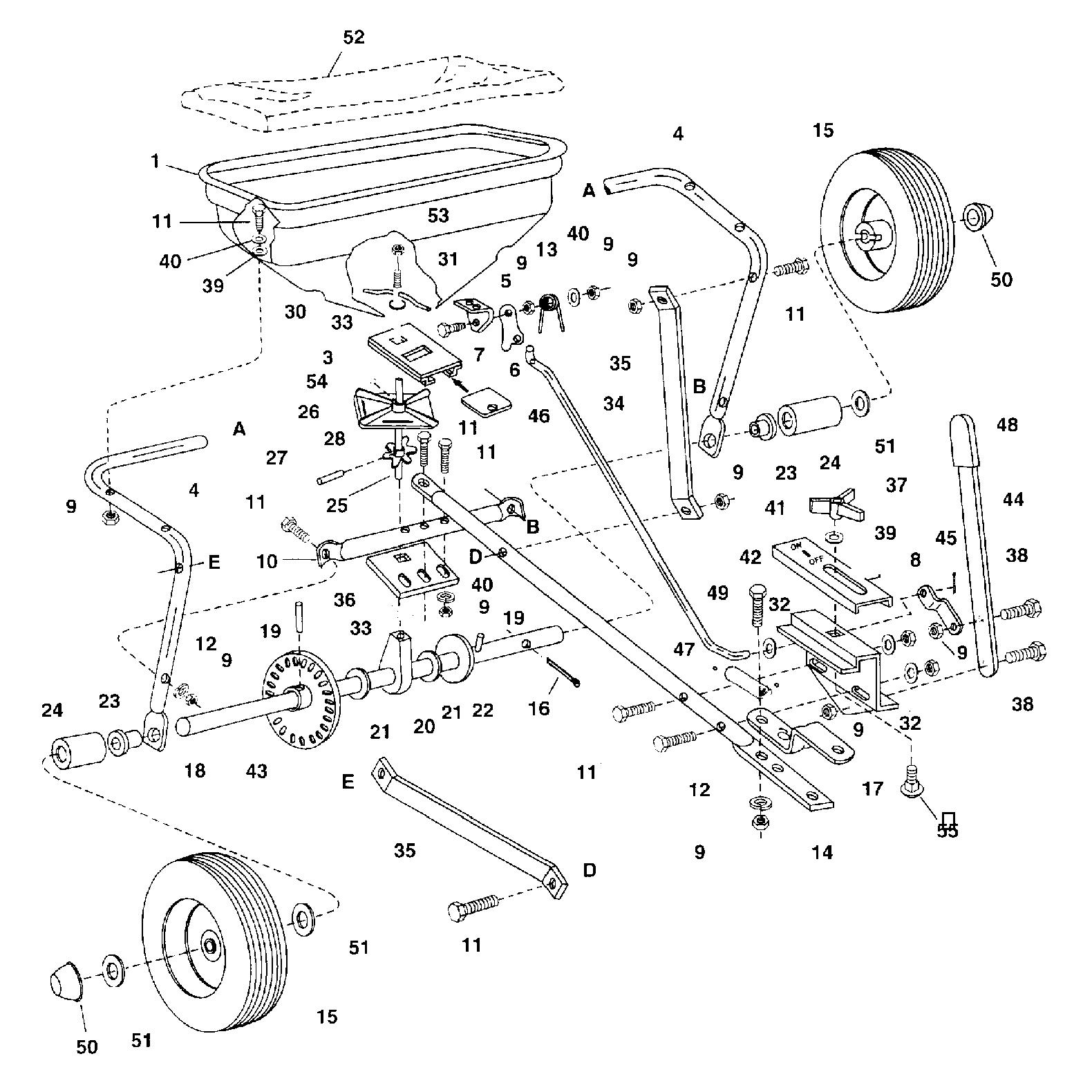

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
46505-AF
|
OWNER'S MANUAL
|
N/A
|
POA
|
|
001
|
44624-AF
|
Hopper 44624
|
£225.10
|
Add
|
|
002
|
43882-AF
|
Rivet, Stainless 43882
|
£4.85
|
Add
|
|
003
|
62482-AF
|
ASSY GUIDE CLOSURE
|
£57.27
|
Add
|
|
004
|
44588-AF
|
Tube, Frame 44588
|
£89.24
|
Add
|
|
005
|
23753-AF
|
SLIDE GATE ANGLE BRACKET
|
£3.62
|
Add
|
|
006
|
23758-AF
|
SLIDE GATE BRACKET
|
£3.87
|
Add
|
|
007
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
008
|
23756-AF
|
Flow Control Link 23756
|
£4.05
|
Add
|
|
009
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
010
|
44591-AF
|
Tube, Crossover 44591
|
£24.35
|
Add
|
|
011
|
43648-AF
|
Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648
|
£4.58
|
Add
|
|
012
|
43177-AF
|
Washer, Lock 1/4" I.D.* 43177
|
£3.08
|
Add
|
|
013
|
44566-AF
|
SPRING TORSION
|
£4.74
|
Add
|
|
014
|
44586-AF
|
Tube, Hitch 44586
|
£37.34
|
Add
|
|
015
|
47052-AF
|
WHEEL
|
£130.97
|
Add
|
|
016
|
47063-AF
|
COTTER PIN
|
£3.49
|
Add
|
|
017
|
23818-AF
|
Bracket, Hitch
|
£10.66
|
Add
|
|
018
|
24407-AF
|
Shaft, Axle 24407
|
£57.95
|
Add
|
|
019
|
44665-AF
|
Pin, Spring 5/32" Dia. x 1-1/4" Lg. 44665
|
£4.05
|
Add
|
|
020
|
44672-AF
|
Bushing, Axle Shaft 44672
|
£18.96
|
Add
|
|
021
|
44137-AF
|
Washer, Flat 1/2" I.D. 44137
|
£2.60
|
Add
|
|
022
|
R19171616-AF
|
WASHER 17/32X1X16GA
|
£3.76
|
Add
|
|
023
|
741-0248
|
Bearing, Flange
|
£14.56
|
Add
|
|
024
|
46501-AF
|
Tube, Spacer 46501
|
£8.40
|
Add
|
|
025
|
23524-AF
|
SHAFT SPROCKET (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
026
|
04367-AF
|
SPREADER PLATE
|
£33.08
|
Add
|
|
027
|
43850-AF
|
ROLL PIN
|
£6.78
|
Add
|
|
028
|
44468-AF
|
SPROCKET 6T
|
£6.85
|
Add
|
|
029
|
C-9M5732
|
Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
030
|
23766-AF
|
SLEEVE AGITATOR (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
031
|
43878-AF
|
WIRE AGITATOR
|
£14.86
|
Add
|
|
032
|
R19111116-AF
|
WASHER
|
£3.76
|
Add
|
|
033
|
44285-AF
|
BUSHING DELRIN
|
£5.63
|
Add
|
|
034
|
44469-AF
|
Rod, Flow Control 44469
|
£28.51
|
Add
|
|
035
|
23525-AF
|
Brace, Hitch 23525
|
£38.89
|
Add
|
|
036
|
23780-AF
|
Support, Shaft
|
£7.06
|
Add
|
|
037
|
43849-AF
|
Knob, Plastic 1/4-20 Thd. 43849
|
£24.61
|
Add
|
|
038
|
43866-AF
|
Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866
|
£3.48
|
Add
|
|
039
|
1543-69-AF
|
Washer, Nylon 1543-069
|
N/A
|
POA
|
|
040
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
041
|
23755-AF
|
Gage, Flow Control 23755
|
£20.71
|
Add
|
|
042
|
23754-AF
|
Bracket, Flow Control Mount 23754
|
£19.59
|
Add
|
|
043
|
62798-AF
|
GEAR ASSY
|
£98.33
|
Add
|
|
044
|
23757-AF
|
SPRING ASSY 23757
|
£13.83
|
Add
|
|
045
|
44101-AF
|
Cotter Pin 3/32" x 3/4" Lg.* 44101
|
£3.91
|
Add
|
|
046
|
23533-AF
|
PLATE CLOSURE
|
£15.33
|
Add
|
|
047
|
43000-AF
|
SPRING EXTENSION
|
£11.08
|
Add
|
|
048
|
43848-AF
|
Grip, Flow Control Arm 43848
|
£5.99
|
Add
|
|
049
|
43661-AF
|
HEX BOLT
|
£3.11
|
Add
|
|
050
|
44663-AF
|
CAP NUT
|
£4.31
|
Add
|
|
051
|
R19171616-AF
|
WASHER 17/32X1X16GA
|
£3.76
|
Add
|
|
052
|
44619-AF
|
OPTIONAL VINYL HOPPER COVER AF-44619
|
£49.11
|
Add
|
|
053
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
054
|
46055-AF
|
PIN SPRING
|
£3.49
|
Add
|
|
055
|
44950-AF
|
BOLT
|
£3.62
|
Add
|
