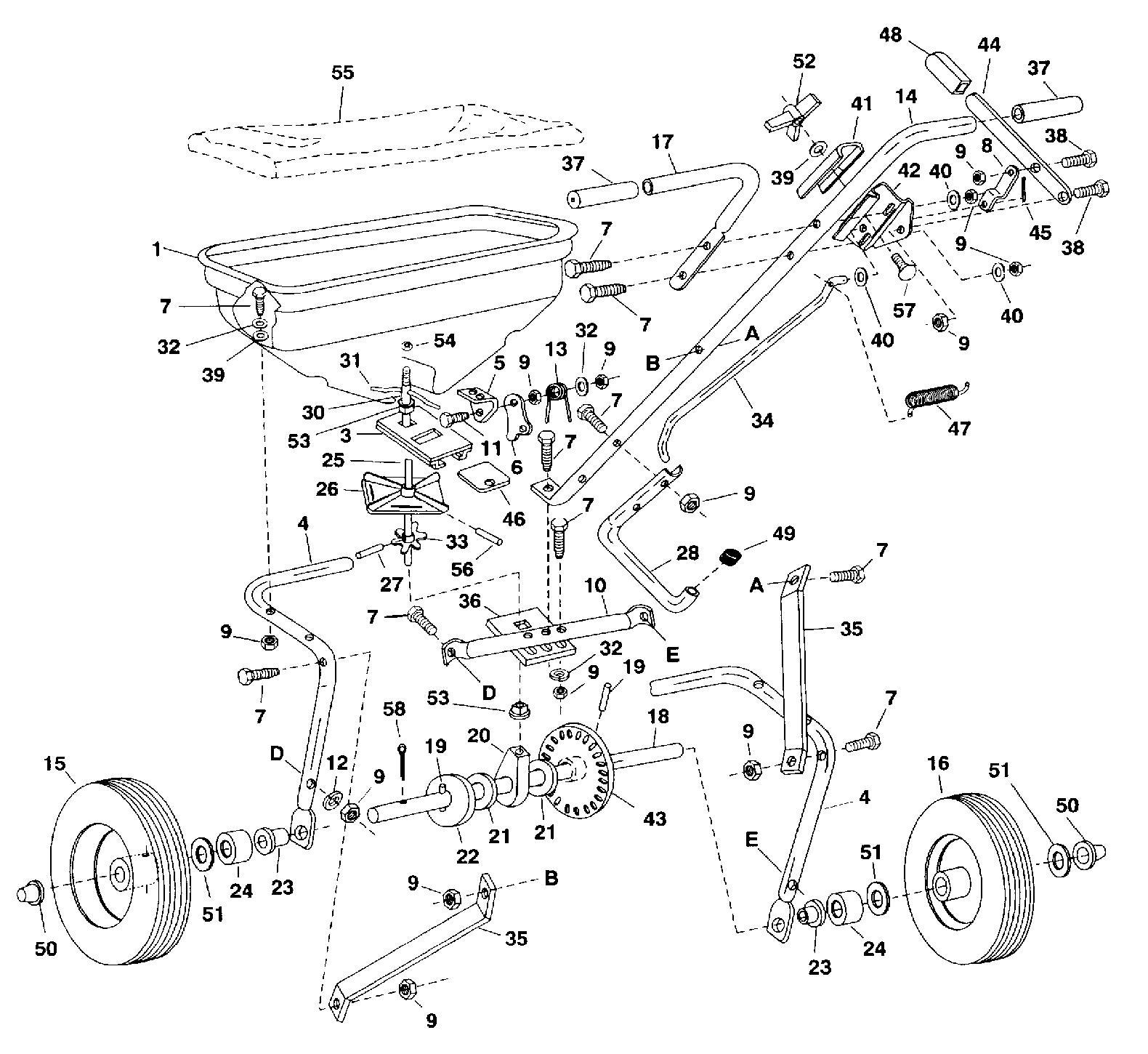

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
47290-AF
|
OWNER'S MANUAL
|
N/A
|
POA
|
|
001
|
44624-AF
|
Hopper 44624
|
£225.10
|
Add
|
|
002
|
43882-AF
|
Rivet, Stainless 43882
|
£4.85
|
Add
|
|
003
|
62482-AF
|
ASSY GUIDE CLOSURE
|
£57.27
|
Add
|
|
004
|
44588-AF
|
Tube, Frame 44588
|
£89.24
|
Add
|
|
005
|
23753-AF
|
SLIDE GATE ANGLE BRACKET
|
£3.62
|
Add
|
|
006
|
23758-AF
|
SLIDE GATE BRACKET
|
£3.87
|
Add
|
|
007
|
43648-AF
|
Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648
|
£4.58
|
Add
|
|
008
|
23756-AF
|
Flow Control Link 23756
|
£4.05
|
Add
|
|
009
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
010
|
44591-AF
|
Tube, Crossover 44591
|
£24.35
|
Add
|
|
011
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
012
|
43177-AF
|
Washer, Lock 1/4" I.D.* 43177
|
£3.08
|
Add
|
|
013
|
44566-AF
|
SPRING TORSION
|
£4.74
|
Add
|
|
014
|
44590-AF
|
Tube, Handle (Long)
|
£52.25
|
Add
|
|
015
|
47052-AF
|
WHEEL
|
£130.97
|
Add
|
|
016
|
47051-AF
|
WHEELS
|
N/A
|
POA
|
|
017
|
44589-AF
|
Tube, Handle (Short)
|
£19.65
|
Add
|
|
018
|
24407-AF
|
Shaft, Axle 24407
|
£57.95
|
Add
|
|
019
|
44665-AF
|
Pin, Spring 5/32" Dia. x 1-1/4" Lg. 44665
|
£4.05
|
Add
|
|
020
|
44672-AF
|
Bushing, Axle Shaft 44672
|
£18.96
|
Add
|
|
021
|
44137-AF
|
Washer, Flat 1/2" I.D. 44137
|
£2.60
|
Add
|
|
022
|
R19171616-AF
|
WASHER 17/32X1X16GA
|
£3.76
|
Add
|
|
023
|
741-0248
|
Bearing, Flange
|
£14.56
|
Add
|
|
024
|
46501-AF
|
Tube, Spacer 46501
|
£8.40
|
Add
|
|
025
|
23524-AF
|
SHAFT SPROCKET (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
026
|
04367-AF
|
SPREADER PLATE
|
£33.08
|
Add
|
|
027
|
43850-AF
|
ROLL PIN
|
£6.78
|
Add
|
|
028
|
44587-AF
|
Tube, Leg Stand
|
£27.59
|
Add
|
|
029
|
C-9M5732
|
Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
030
|
23766-AF
|
SLEEVE AGITATOR (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
031
|
43878-AF
|
WIRE AGITATOR
|
£14.86
|
Add
|
|
032
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
033
|
44468-AF
|
SPROCKET 6T
|
£6.85
|
Add
|
|
034
|
44514-AF
|
Rod, Flow Control 44514
|
£26.81
|
Add
|
|
035
|
23525-AF
|
Brace, Hitch 23525
|
£38.89
|
Add
|
|
036
|
23780-AF
|
Support, Shaft
|
£7.06
|
Add
|
|
037
|
44482-AF
|
Grip, Handle 44482
|
£7.23
|
Add
|
|
038
|
43866-AF
|
Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866
|
£3.48
|
Add
|
|
039
|
1543-69-AF
|
Washer, Nylon 1543-069
|
N/A
|
POA
|
|
040
|
R19111116-AF
|
WASHER
|
£3.76
|
Add
|
|
041
|
23755-AF
|
Gage, Flow Control 23755
|
£20.71
|
Add
|
|
042
|
23754-AF
|
Bracket, Flow Control Mount 23754
|
£19.59
|
Add
|
|
043
|
62798-AF
|
GEAR ASSY
|
£98.33
|
Add
|
|
044
|
23759-AF
|
Flow Control Arm 23759
|
£10.63
|
Add
|
|
045
|
44101-AF
|
Cotter Pin 3/32" x 3/4" Lg.* 44101
|
£3.91
|
Add
|
|
046
|
23533-AF
|
PLATE CLOSURE
|
£15.33
|
Add
|
|
047
|
43000-AF
|
SPRING EXTENSION
|
£11.08
|
Add
|
|
048
|
43848-AF
|
Grip, Flow Control Arm 43848
|
£5.99
|
Add
|
|
049
|
44481-AF
|
Cap, Vinyl 44481
|
£4.05
|
Add
|
|
050
|
44663-AF
|
CAP NUT
|
£4.31
|
Add
|
|
051
|
R19171616-AF
|
WASHER 17/32X1X16GA
|
£3.76
|
Add
|
|
052
|
43849-AF
|
Knob, Plastic 1/4-20 Thd. 43849
|
£24.61
|
Add
|
|
053
|
44285-AF
|
BUSHING DELRIN
|
£5.63
|
Add
|
|
054
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
055
|
44619-AF
|
OPTIONAL VINYL HOPPER COVER AF-44619
|
£49.11
|
Add
|
|
056
|
46055-AF
|
PIN SPRING
|
£3.49
|
Add
|
|
057
|
44950-AF
|
BOLT
|
£3.62
|
Add
|
|
058
|
47063-AF
|
COTTER PIN
|
£3.49
|
Add
|
