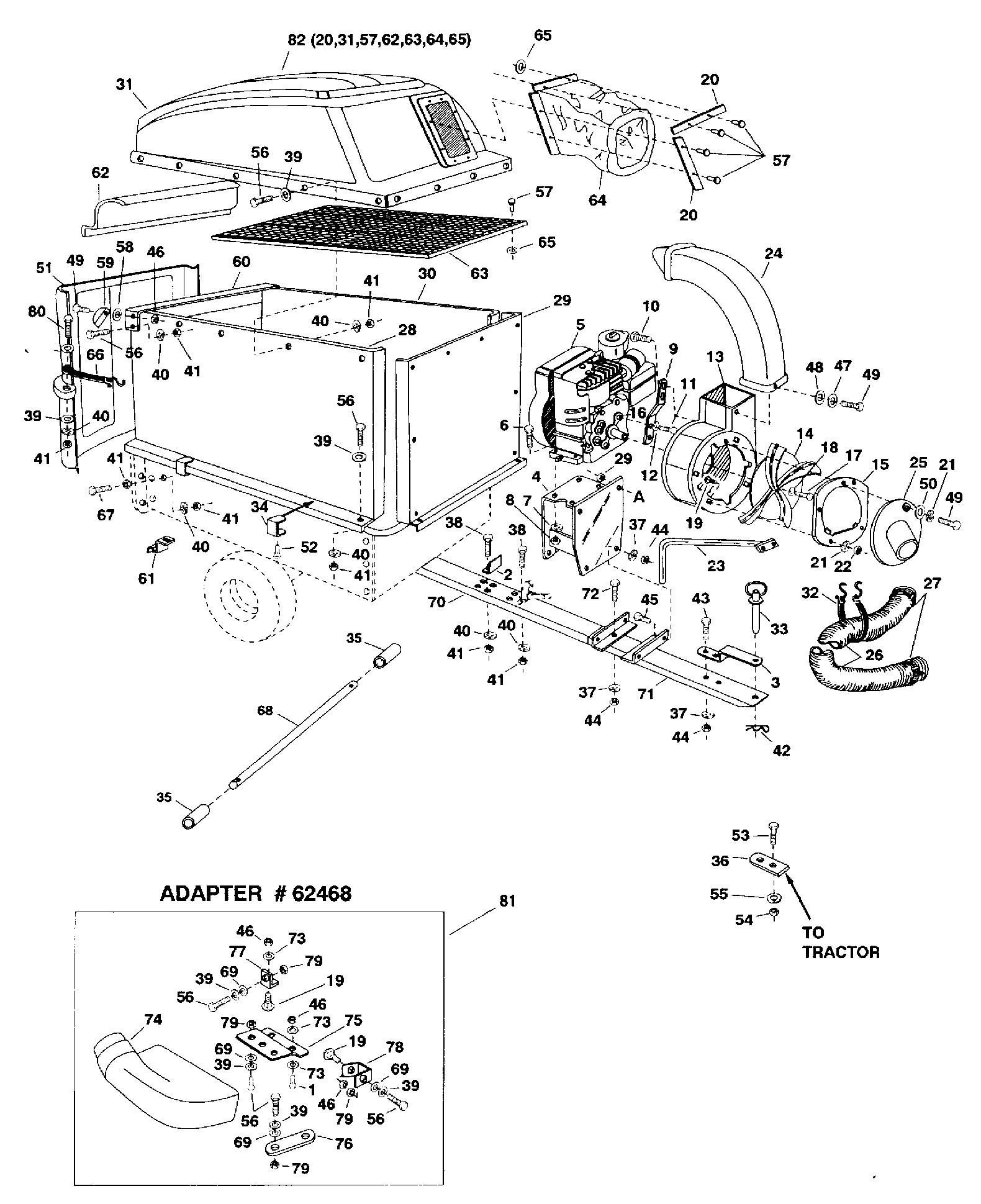

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
47023-AF
|
OWNER'S MANUAL
|
N/A
|
POA
|
|
001
|
43063-AF
|
BOLT
|
£4.12
|
Add
|
|
002
|
23655-AF
|
SPRING RETRAINER BRKT TRANS AF-23655
|
£8.54
|
Add
|
|
003
|
23475-AF
|
HITCH BRACKET HD
|
£33.80
|
Add
|
|
004
|
62450-AF
|
ENGINE MOUNTING PLATE AF-62450
|
£264.71
|
Add
|
|
006
|
43085-AF
|
Bolt, Hex 5/16-18 x 1-1/2"
|
£4.15
|
Add
|
|
007
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
008
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
009
|
23474-AF
|
BRACKET, ENG. TO BLOWER (MTG.) AF-23474
|
£33.01
|
Add
|
|
010
|
43749-AF
|
BOLT, HEX 5/16 x 3/4 TD CUT AF-43749
|
£3.85
|
Add
|
|
011
|
710-0627
|
HEX SCREW
|
£3.32
|
Add
|
|
012
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
013
|
62486-AF
|
Deck Adapter Kit 62486
|
£280.80
|
Add
|
|
014
|
681-0075
|
PLATE ASSY-VANE
|
£333.05
|
Add
|
|
015
|
AF-14563
|
ASSY, NOZZLE PLATE
|
£63.40
|
Add
|
|
016
|
23477-AF
|
Key, 1/4" Sq. 2" Long 23477
|
£9.28
|
Add
|
|
017
|
47048-AF
|
HEX BOLT 3/8-24X1-1/2" AF-47048
|
£5.30
|
Add
|
|
018
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
019
|
43080-AF
|
CARRIAGE BOLT
|
£3.49
|
Add
|
|
020
|
23842-AF
|
Boot Mounting Strap 23842
|
£6.99
|
Add
|
|
021
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
022
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
023
|
62451-AF
|
BRACKET AF-62451
|
£97.86
|
Add
|
|
024
|
43788-AF
|
ELBOW WITH DEFLECTOR (PLASTIC) AF-43788
|
£328.03
|
Add
|
|
025
|
43791-AF
|
Hose Adapter 43791
|
£30.61
|
Add
|
|
026
|
43792-AF
|
Hose 43792
|
£340.87
|
Add
|
|
027
|
43793-AF
|
Hose Clamp 43793
|
£18.87
|
Add
|
|
028
|
23834-AF
|
SIDE FRAME RIGHT AF-23834
|
£185.00
|
Add
|
|
029
|
23835-AF
|
FRONT PANEL, CART EXTENSION AF-23835
|
£129.45
|
Add
|
|
030
|
23833-AF
|
PLATE-SIDE LH AF-23833
|
£185.00
|
Add
|
|
031
|
44791-AF
|
POLY HARD TOP (AVAILABLE ONLY WITH ITEM NO.81)
|
£745.73
|
Add
|
|
032
|
43790-AF
|
Tarp Strap, 25" 43790
|
£28.31
|
Add
|
|
033
|
43884-AF
|
Hitch Pin 43884
|
£42.16
|
Add
|
|
034
|
23478-AF
|
CLIP-BODY AF-23478
|
£21.76
|
Add
|
|
035
|
44678-AF
|
Spacer (45-0351) 44678
|
£14.07
|
Add
|
|
036
|
23540-AF
|
Hitch Plate 23540
|
£13.72
|
Add
|
|
037
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
038
|
43796-AF
|
BOLT, HEX HD 1/4-20x2-3/4 GR 5 AF-43796
|
£4.05
|
Add
|
|
039
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
040
|
43177-AF
|
Washer, Lock 1/4" I.D.* 43177
|
£3.08
|
Add
|
|
041
|
43178-AF
|
Hex Nut, 1/4-20 Thread
|
£3.37
|
Add
|
|
042
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
|
043
|
43087-AF
|
Hex Bolt, 3/8-16 x 1-1/4" Long 43087
|
£4.58
|
Add
|
|
044
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
045
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
|
046
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
047
|
43572-AF
|
WASHER AF-43572
|
£4.99
|
Add
|
|
048
|
43553-AF
|
WASHER,NYLON1-1/2ODx5/16IDx1/8 AF-43553
|
£3.55
|
Add
|
|
049
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
050
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
051
|
44790-AF
|
Poly Rear Door 44790
|
£314.16
|
Add
|
|
052
|
43768-AF
|
BOLT,HEX 3/8-16x1-1/2 FULL THD AF-43768
|
£5.68
|
Add
|
|
053
|
43351-AF
|
Hex Bolt, 1/2-1 3 x 1-1/4" 43351
|
£5.18
|
Add
|
|
054
|
43262-AF
|
NUT 1/2-13 HEX LOCK
|
£6.20
|
Add
|
|
055
|
43352-AF
|
Flat Washer, 7/16" 43352
|
£3.48
|
Add
|
|
056
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
057
|
43882-AF
|
Rivet, Stainless 43882
|
£4.85
|
Add
|
|
058
|
1543-69-AF
|
Washer, Nylon 1543-069
|
N/A
|
POA
|
|
059
|
23789-AF
|
Door Latch 23789
|
£7.06
|
Add
|
|
060
|
23836-AF
|
Cross Brace 23836
|
£39.05
|
Add
|
|
061
|
23838-AF
|
Door Support 23838
|
£20.42
|
Add
|
|
062
|
23837-AF
|
BRACKET AF-23837
|
£48.66
|
Add
|
|
063
|
44792-AF
|
SCREEN AF-44792
|
£62.37
|
Add
|
|
064
|
44796-AF
|
BOOT, HARD TOP AF-44796
|
£77.26
|
Add
|
|
065
|
43910-AF
|
Washer, Flat #10 SAE 43910
|
£3.19
|
Add
|
|
066
|
44840-AF
|
STRAP, TARP 25" TDS # 2025 AF-44840
|
£23.90
|
Add
|
|
067
|
43661-AF
|
HEX BOLT
|
£3.11
|
Add
|
|
068
|
23488-AF
|
Axle, Wheel 1" Dia. 23488
|
£125.17
|
Add
|
|
069
|
1543-69-AF
|
Washer, Nylon 1543-069
|
N/A
|
POA
|
|
070
|
63025-AF
|
TONGUE WELDMENT ASS`Y (REAR AF-63025
|
£208.81
|
Add
|
|
071
|
63026-AF
|
TONGUE WELDMENT ASS`Y (FRONT AF-63026
|
£235.27
|
Add
|
|
072
|
46938-AF
|
HEXBOLT 3/8X3-1/4"LG AF-46938
|
£4.27
|
Add
|
|
073
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
074
|
43830-AF
|
Adapter, Deck
|
£175.88
|
Add
|
|
075
|
23560-AF
|
Bracket, Deck Adapter
|
£47.89
|
Add
|
|
076
|
23825-AF
|
Mounting Strap
|
£4.15
|
Add
|
|
077
|
23826-AF
|
Bracket, Angle
|
£8.03
|
Add
|
|
078
|
23827-AF
|
Mounting Bracket
|
£11.33
|
Add
|
|
079
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
080
|
1509-090
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
081
|
62468-AF
|
Deck Adapter Kit (Includes parts in box shown on page 26)
|
£370.41
|
Add
|
|
082
|
62836-AF
|
COVER AF-44791
|
£830.29
|
Add
|
