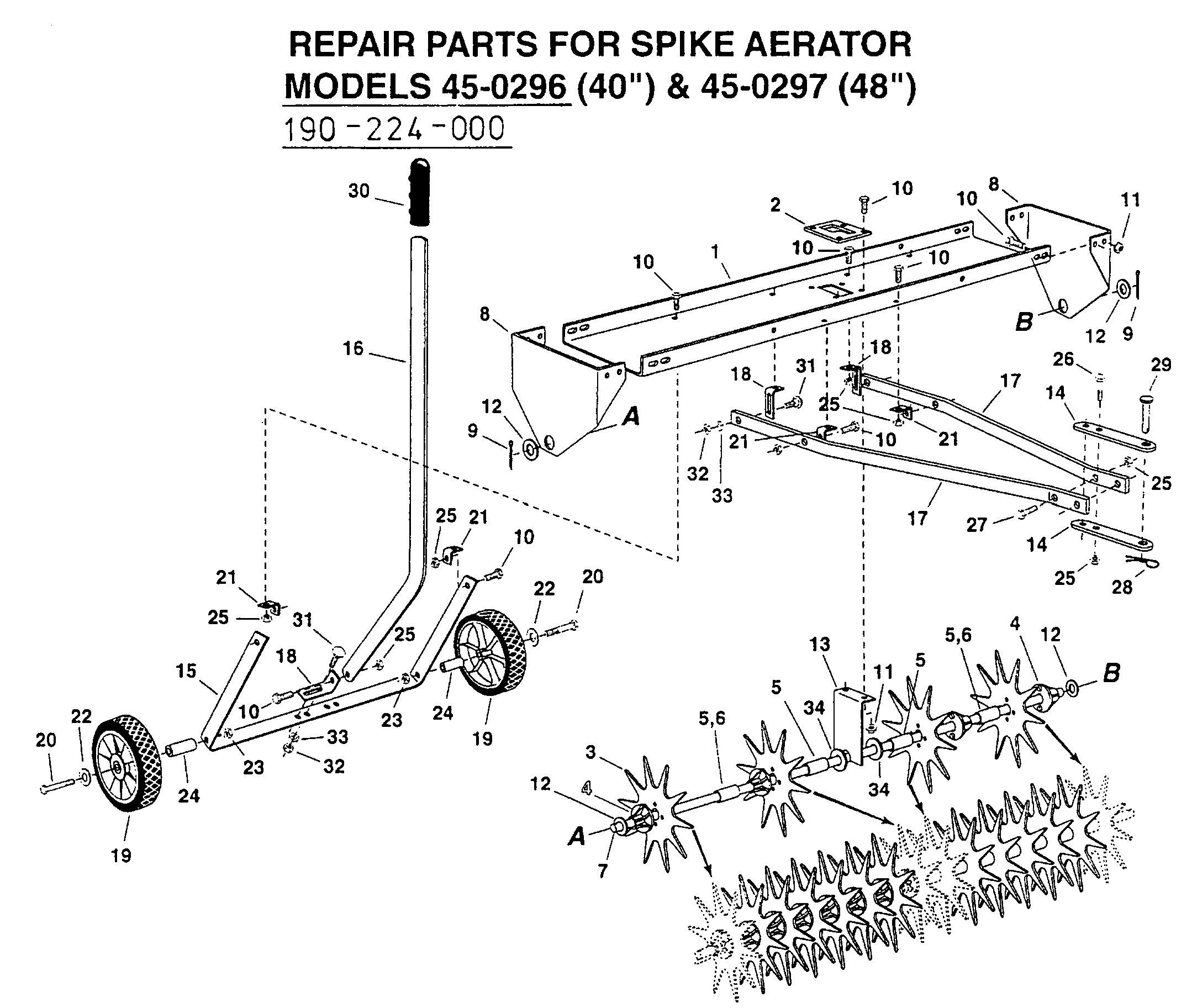

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref |
No |
Description |
Price |
|
|
47636-AF
|
OWNERS MANUAL
|
N/A
|
POA
|
001
|
24597-AF
|
TRAY, 40" SPIKE DISK MOUNT AF-24597
|
£78.42
|
Add
|
001
|
24628-AF
|
TRAY, 48" SPIKE DISK MOUNT
|
£72.96
|
Add
|
002
|
24594-AF
|
PLATE AF-24594
|
£18.41
|
Add
|
003
|
23900-AF
|
Disk, Spike 23900
|
£20.49
|
Add
|
003
|
23900-AF
|
Disk, Spike 23900
|
£20.49
|
Add
|
004
|
45148-AF
|
Hub, Spike Disk 45148
|
£7.23
|
Add
|
004
|
45148-AF
|
Hub, Spike Disk 45148
|
£7.23
|
Add
|
005
|
44494-AF
|
Spacer, 1.33" Long 44494
|
£4.85
|
Add
|
005
|
44494-AF
|
Spacer, 1.33" Long 44494
|
£4.85
|
Add
|
006
|
44500-AF
|
SPACER, 1" O.D. X 1" LG.
|
£4.49
|
Add
|
007
|
24598-AF
|
AXLE (40") AF-24598
|
£70.46
|
Add
|
007
|
24629-AF
|
AXLE (48")
|
£84.68
|
Add
|
008
|
24599-AF
|
END PLATE AF-24599
|
£23.10
|
Add
|
009
|
43501-AF
|
Cotter Pin, 9/64" x 1-1/2" 43501
|
£3.48
|
Add
|
010
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
011
|
46584-AF
|
Nut, Whiz Lock 5/16-18 46584
|
£3.91
|
Add
|
012
|
43009-AF
|
WASHER1-5/8 INCH O D X 25/32 INCH ID
|
£5.26
|
Add
|
013
|
24600-AF
|
BRACKET AXLE SUPPORT
|
£9.30
|
Add
|
014
|
23981-AF
|
HITCH BRACKET
|
£9.80
|
Add
|
015
|
24595-AF
|
AXLE BRACKET AF-24595
|
£34.56
|
Add
|
016
|
24596-AF
|
LIFT HANDLE
|
£31.06
|
Add
|
017
|
23914-AF
|
Hitch Mount Arm 23914
|
£35.73
|
Add
|
018
|
23442-AF
|
BRACKET HITCH ARM MOUNT
|
£21.43
|
Add
|
019
|
44238-AF
|
WHEEL ASSY 44238
|
£41.00
|
Add
|
020
|
43432-AF
|
Bolt, Hex 3/8-16 x 2-1/2" Lg. 43432
|
£4.05
|
Add
|
021
|
23826-AF
|
Bracket, Angle
|
£8.03
|
Add
|
022
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
023
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
024
|
23906-AF
|
BEARING,JOURNAL 23906
|
£4.05
|
Add
|
025
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
026
|
44180-AF
|
BOLT HEX HEAD
|
£4.92
|
Add
|
027
|
43840-AF
|
HEX BOLT
|
£3.49
|
Add
|
028
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
029
|
47623-AF
|
HITCH PIN
|
£3.56
|
Add
|
030
|
43943-AF
|
Handle Grip 43943
|
£8.46
|
Add
|
031
|
43080-AF
|
CARRIAGE BOLT
|
£3.49
|
Add
|
032
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
033
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
034
|
1540-162-AF
|
Washer, Flat 1/2" 1540-162
|
£6.62
|
Add
|
