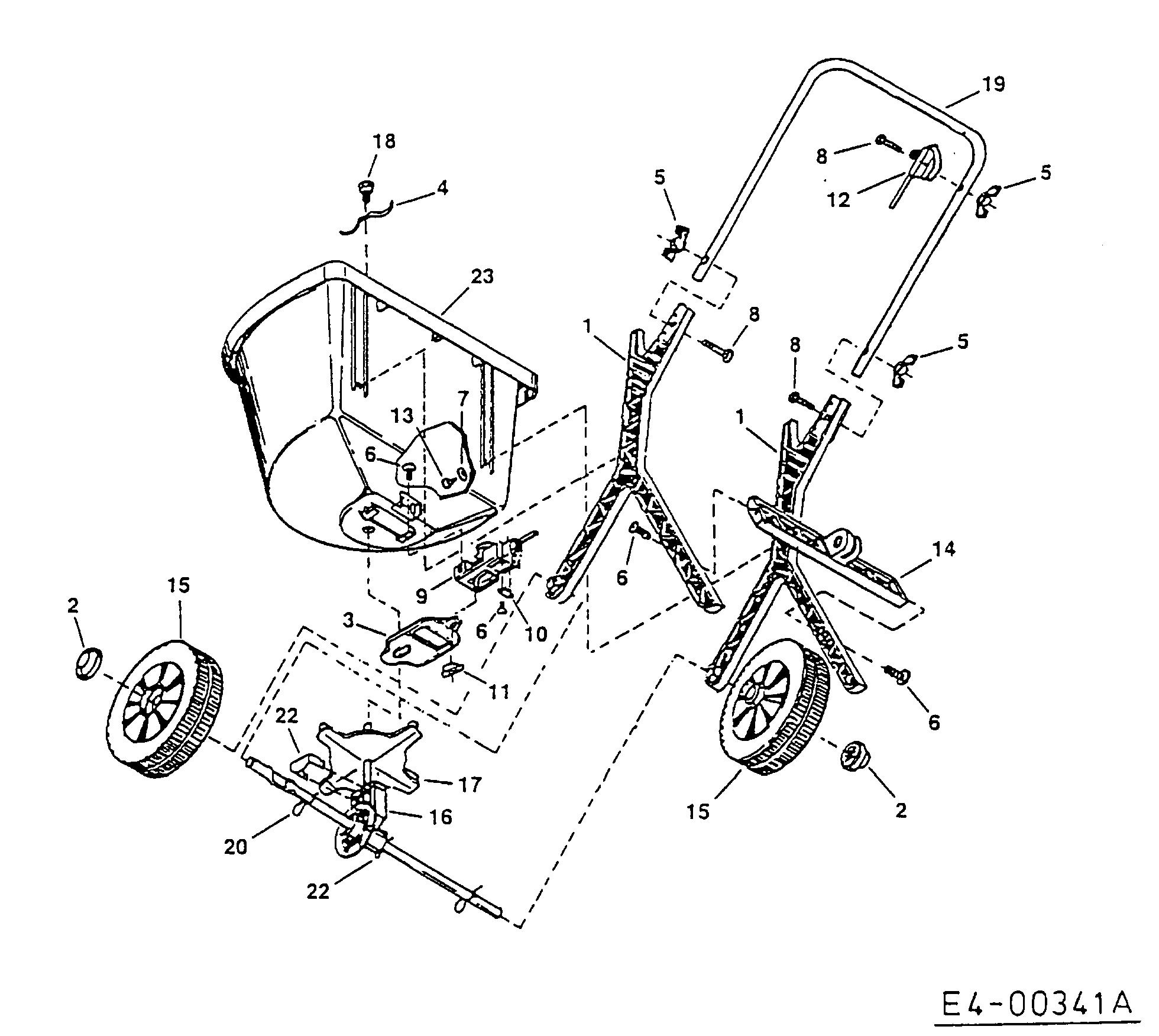

FG349_0010

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	47123-AF	OWNER'S MANUAL	N/A	POA
001	47108-AF	PLASTIC LEG AF-47108	£31.33	Add
002	44663-AF	CAP NUT	£4.31	Add
003	47109-AF	FLOW SLIDE	£3.96	Add
004	43878-AF	WIRE AGITATOR	£14.86	Add
005	47141-AF	NUT NYLON WING 1/4-20 NU34	£3.49	Add
006	47112-AF	SCREW, #10-16 X 1/2"	N/A	POA
007	47113-AF	WASHER, FLAT .22" X .78"	N/A	POA
008	46000-AF	CARRIAGE BOLT AF-46000	£4.05	Add
009	63688-AF	CONTROL GAUGE ASSY. AF-63688	£19.99	Add
010	24441-AF	STRAP-LOCKING AF-24441	£7.94	Add
011	47110-AF	WING NUT SELF THREADING AF-47110	£3.97	Add
012	47118-AF	BOWDEN CABLE AF-47118	N/A	POA
013	44486-AF	SCREW, HEX HEAD AF-44486	£3.91	Add
014	47119-AF	ROD-GRILLE SUPPORT AF-47119	£7.72	Add
015	47120-AF	WHEEL ASSY W/TIRE AF-47120	£30.50	Add
016	63690-AF	REAR AXLE AF-63690	£127.02	Add
017	47124-AF	IMPELLER	£10.62	Add
018	47126-AF	HEX HEAD SCREW AF-47126	£3.68	Add
019	47137-AF	HANDLE TUBE	N/A	POA
020	47134-AF	PIN HAIR COTTER .08" X 1.58"	£3.91	Add
021	47135-AF	WASHER 17/32"X7/8" AF-47135	£3.91	Add
022	47136-AF	CLIP, GEAR RETAINER AF-47136	£4.29	Add
023	47122-AF	POLY TRAY AF-47122	£42.66	Add
023	47139-AF	POLY TRAY AF-47139	£52.08	Add
