FG343_0010

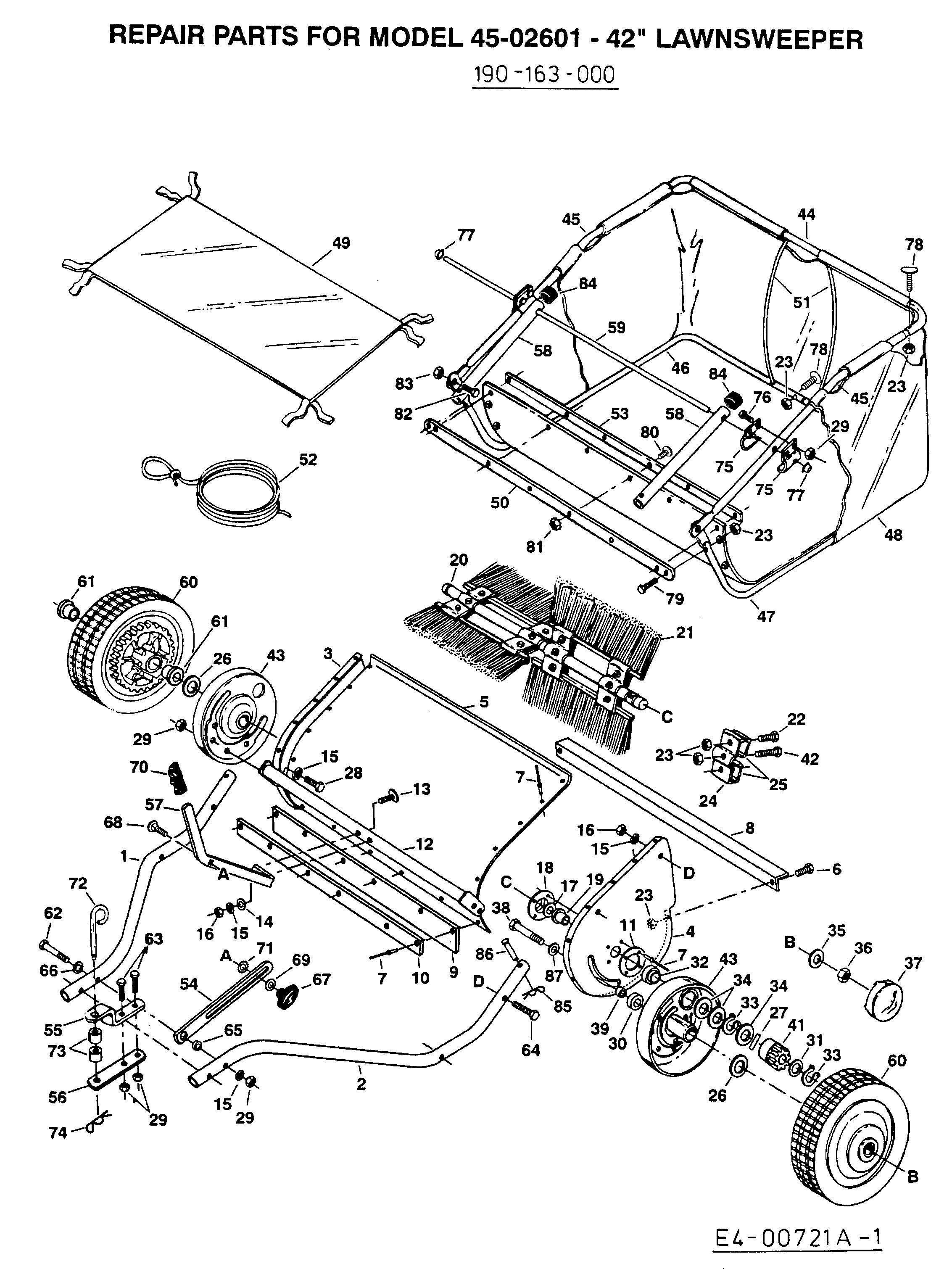

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	47479-AF	OWNERS MANUAL	N/A	POA
001	46776-AF	HITCH TUBE R.H. AF-46776	£45.85	Add
002	46777-AF	HITCH TUBE L.H. AF-46777	£45.85	Add
003	24182-AF	SIDE FRAME RIGHT AF-24182	£34.78	Add
004	24183-AF	PLATE-SIDE LH AF-24183	£34.78	Add
005	24184-AF	COVER-HARD TOP AF-24184	£33.96	Add
006	43175-AF	Hex Bolt, 1/4-20 x 1/2" * 43175	£4.15	Add
007	C-9M5732	Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A	POA
008	24185-AF	BRACE,REAR SUPPORT AF-24185	£33.67	Add
009	46778-AF	SKIRT,42" AF-46778	£24.73	Add
010	24186-AF	RUBBER STRIP AF-24186	£19.24	Add
011	23336-AF	Washer, Special 23336	£4.88	Add
012	63463-AF	HEIGHT ADJUSTMENT TUBE ASSY AF-63463	£67.13	Add
013	44947-AF	Bolt, Curved Head 5/16-18 x 1-5/8" 44947	£4.05	Add
014	44695-AF	Washer, Bowed 44695	£4.05	Add
015	43086-AF	Lock Washer, 5/16" 43086	£3.48	Add
016	43083-AF	HEX NUT	£3.32	Add
017	R19212113	Washer, 5/8" SAE	£5.92	Add
018	AF-1629-56	Retainer, Dust Cover 1629-56	£26.36	Add
019	44910-AF	BUSHING BRUSH SHAFT (RED)	£8.31	Add
020	24188-AF	SHAFT, BRUSH - 42" HD AF-24188	£111.52	Add
021	46780-AF	BRUSH 42"	£25.59	Add
022	43012-AF	BOLT	£3.32	Add
023	712-0291	LOCK-NUT	£2.77	Add
024	23580-AF	BRUSH RETAINER 42-0197	£9.24	Add
025	23581-AF	BRUSH RETAINER 42-0197	£5.45	Add
026	44008-AF	WASHER	£3.24	Add
027	47046-AF	DOWELL PIN 1/4 X 3/4	£3.56	Add
028	44692-AF	Bolt, Hex 5/16-18 x 1/2" Lg. 44692	£4.05	Add
029	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
030	44911-AF	SPACER	£4.12	Add
031	44006-AF	WASHER	£5.01	Add
032	46219-AF	SPACER	£11.10	Add
033	AF-1650-21	RETAINING RING	£2.61	Add
034	40001-AF	Washer, Shim 1-1/8" x .594" x .025" 44007-AF	£3.58	Add
035	141-AF	Washer, Flat 1-1/2" x .375" x .062" 141	£3.91	Add
036	1038-AF	Nut, Nylock 3/8-24 Thread 1038	£3.48	Add
037	2674-32-AF	Hub Cap 2674-32	N/A	POA
038	44961-AF	Bolt, Hex 3/8-24 x 3-1/4" Lg. 44961	£4.31	Add
039	23400-AF	SPACER	£5.85	Add
040	2692-6-AF	DRIVE PINION R.H. AF-2692-6	£25.10	Add
041	2692-7-AF	DRIVE PINION LH AF-2692-7	£21.85	Add
042	43661-AF	HEX BOLT	£3.11	Add
043	63027-AF	ASS`Y, DUST COVER 63027	£73.32	Add
044	47477-AF	TUBE,UPPER HOPPER FRAME AF-47477	£38.94	Add
045	47478-AF	TUBE,UPPER HOPPER FRAME AF-47478	£34.66	Add
046	46732-AF	FRAME, LOWER RIGHT AF-46732	£48.20	Add
047	46733-AF	FRAME, LOWER LEFT AF-46733	£48.20	Add
048	46736-AF	HOPPER BAG	£279.20	Add
049	46737-AF	BAG-WINDSCREEN 42" AF-46737	£78.32	Add
050	24189-AF	FIXATION STRIP, OUTSIDE AF-24189	£29.55	Add
051	43926-AF	HOPPER SUPPORT ROD	£8.99	Add
052	43737-AF	Hopper Rope 43737	£5.99	Add
053	24190-AF	FIXATION STRIP, INSIDE AF-24190	£12.88	Add
054	24191-AF	STRAP, HEIGHT ADJUSTMENT	£14.43	Add
055	23687-AF	Hitch Bracket 23687	£33.95	Add
056	24192-AF	BRACKET (EXRED)	£8.88	Add
057	24193-AF	HANDLE, HEIGHT ADJUSTMENT	£28.71	Add
058	46781-AF	TUBE, BAG ARM	£16.99	Add
059	46823-AF	ROD,HYDRO DISENGAGEMENT AF-46823	£10.51	Add
060	44985-AF	WHEEL ASSY. FOR 38" SWEEPER	£116.26	Add
061	45088-AF	WHEEL BEARING	£12.03	Add
062	46782-AF	BOLT	£3.41	Add
063	43224-AF	BOLT	£5.85	Add
064	43084-AF	BOLT	£2.56	Add
065	46847-AF	SLEEVE AF-46847	£3.85	Add
066	R19111116-AF	WASHER	£3.76	Add
067	43720-AF	KNOB (RED)	£7.83	Add
068	43080-AF	CARRIAGE BOLT	£3.49	Add
069	43081-AF	FLAT WASHER	£3.49	Add
070	43943-AF	Handle Grip 43943	£8.46	Add
071	44732-AF	TOOTH LOCK WASHER	£3.49	Add
072	23353-AF	HITCH PIN	£19.20	Add
073	23368-AF	Tube, Hitch Spacer 23368	£8.18	Add
074	43343-AF	PIN COTTER	£4.20	Add
075	23331-AF	THROTTLE CABLE CLIP 23331	£12.01	Add
076	43182-AF	Hex Bolt, 5/16" x 3/4" 43182	£4.31	Add
077	44917-AF	PALNUT (RED)	£3.76	Add
078	43978-AF	Bolt, Curved 1.4-20 x 1" 43978	£4.05	Add
079	1509-090	NO LONGER AVAILABLE	N/A	POA
080	43346-AF	Truss Head Bolt, #10- 32 x 5/8" 43346	£3.48	Add
081	43662-AF	Lock Nut, 10-32 43662	£3.73	Add
082	43407-AF	Bolt, Hex 3/8-16 x 3/4" Lg. * 43407	£3.91	Add
083	43082-AF	HEX LOCK NUT	£4.12	Add
084	44481-AF	Cap, Vinyl 44481	£4.05	Add
085	43055-AF	COTTER PIN	£6.04	Add
086	46867-AF	Clevis Pin, 1/4" x 1-3/4" Lg. 46867	£4.65	Add
087	43070-AF	Washer, 3/8"	£3.91	Add
