FG339_0010

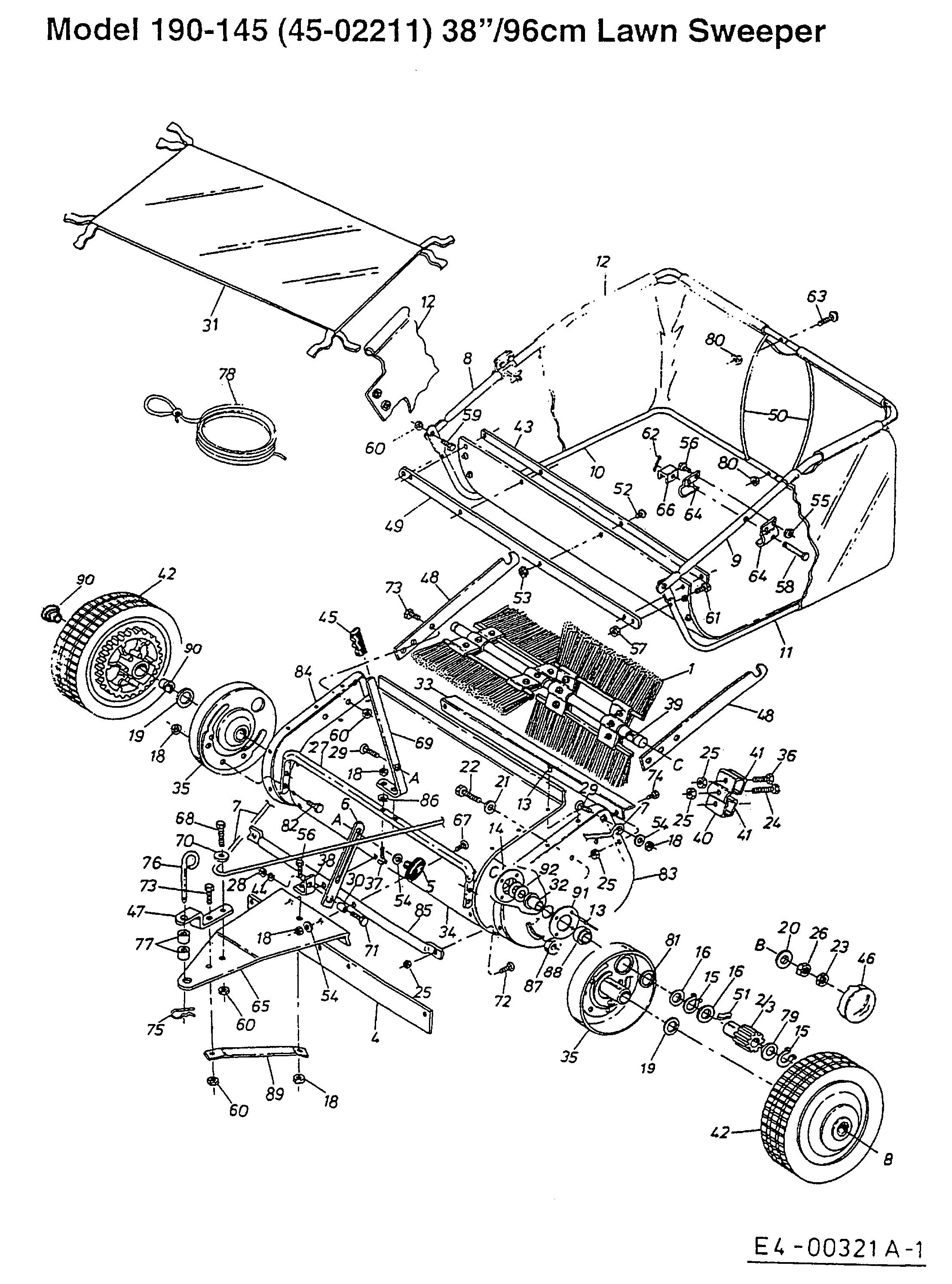

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	43905-AF	BRUSH	£27.85	Add
002	2692-6-AF	DRIVE PINION R.H. AF-2692-6	£25.10	Add
003	2692-7-AF	DRIVE PINION LH AF-2692-7	£21.85	Add
004	44960-AF	RUBBER PADDLE 44960	£25.88	Add
005	43720-AF	KNOB (RED)	£7.83	Add
006	23851-AF	STELLSCHIENE 23851	£11.94	Add
007	43958-AF	BRACE-VAR SP 43958	£22.35	Add
008	43974-AF	ROD,TIE 43974	£48.92	Add
009	43975-AF	ROD,TIE 43975	£46.50	Add
010	43976-AF	ROD,TIE 43976	£47.89	Add
011	43977-AF	TUBE 43977	£45.47	Add
012	43651-AF	ASSY HOPPER BAG 43651	£229.80	Add
013	C-9M5732	Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A	POA
014	AF-1629-56	Retainer, Dust Cover 1629-56	£26.36	Add
015	AF-1650-21	RETAINING RING	£2.61	Add
016	40001-AF	Washer, Shim 1-1/8" x .594" x .025" 44007-AF	£3.58	Add
017	43182-AF	Hex Bolt, 5/16" x 3/4" 43182	£4.31	Add
018	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
019	44008-AF	WASHER	£3.24	Add
020	0141-000	WASHER	£3.39	Add
021	43070-AF	Washer, 3/8"	£3.91	Add
022	44961-AF	Bolt, Hex 3/8-24 x 3-1/4" Lg. 44961	£4.31	Add
023	44684-AF	Jam Nut, 3/8-24 Thread 44684	£4.05	Add
024	43661-AF	HEX BOLT	£3.11	Add
025	712-0291	LOCK-NUT	£2.77	Add
026	1038-AF	Nut, Nylock 3/8-24 Thread 1038	£3.48	Add
027	44907-AF	JUSTIERGESTÄNGE 44907	£65.96	Add
028	43083-AF	HEX NUT	£3.32	Add
029	43080-AF	CARRIAGE BOLT	£3.49	Add
030	23400-AF	SPACER	£5.85	Add
031	43687-AF	BAG WIND SHIELD 38 IN AF-43687	£30.39	Add
032	44910-AF	BUSHING BRUSH SHAFT (RED)	£8.31	Add
033	23854-AF	Brace, Rear Support 23854	£22.10	Add
034	23849-AF	HÜLLE 23849	£64.00	Add
035	63027-AF	ASS`Y, DUST COVER 63027	£73.32	Add
036	43012-AF	BOLT	£3.32	Add
037	44947-AF	Bolt, Curved Head 5/16-18 x 1-5/8" 44947	£4.05	Add
038	23869-AF	BRACKET, GATE SLIDE ANGLE 23869	£4.05	Add
039	23852-AF	SHAFT 23852	£97.61	Add
040	23580-AF	BRUSH RETAINER 42-0197	£9.24	Add
041	23581-AF	BRUSH RETAINER 42-0197	£5.45	Add
042	44985-AF	WHEEL ASSY. FOR 38" SWEEPER	£116.26	Add
043	23343-AF	PLATE-SHAVE 23343	£19.62	Add
044	43086-AF	Lock Washer, 5/16" 43086	£3.48	Add
045	43943-AF	Handle Grip 43943	£8.46	Add
046	2674-32-AF	Hub Cap 2674-32	N/A	POA
047	23014-AF	HITCH BRACKET	£31.67	Add
048	23812-AF	ARM, BAG MT LG 23812	£25.40	Add
049	23352-AF	Strap, Bag Frame 23352	£28.38	Add
050	43926-AF	HOPPER SUPPORT ROD	£8.99	Add
051	1671-1-AF	PAWL MOD 60 1671-1	£11.82	Add
052	43346-AF	Truss Head Bolt, #10- 32 x 5/8" 43346	£3.48	Add
053	43662-AF	Lock Nut, 10-32 43662	£3.73	Add
054	43081-AF	FLAT WASHER	£3.49	Add
055	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
056	43182-AF	Hex Bolt, 5/16" x 3/4" 43182	£4.31	Add
057	712-0291	LOCK-NUT	£2.77	Add
058	43513-AF	CLEVIS PIN (RED)	£8.53	Add
059	43407-AF	Bolt, Hex 3/8-16 x 3/4" Lg. * 43407	£3.91	Add
060	43082-AF	HEX LOCK NUT	£4.12	Add
061	1509-090	NO LONGER AVAILABLE	N/A	POA
062	714-0474	PIN (RED)	£3.20	Add
063	43978-AF	Bolt, Curved 1.4-20 x 1" 43978	£4.05	Add
064	23331-AF	THROTTLE CABLE CLIP 23331	£12.01	Add
065	23868-AF	TONGUE, HITCH 23868	£116.34	Add
066	23354-AF	BAIL 23354	£11.94	Add
067	44215-AF	Bolt, Carriage 5/16-18 x 1-3/4" 44215	£3.48	Add
068	43062-AF	BOLT 3/8-16 X 1-1/2 HEX HEAD 43062	£4.99	Add
069	23850-AF	Handle, Height Adjustment 23850	£28.31	Add
070	R19172410-AF	WASHER-FLAT AF-R19172410	N/A	POA
071	43814-AF	SLOTTED TRUSS HEADBOLT(5/16-18x3/4)	£3.11	Add
072	44950-AF	BOLT	£3.62	Add
073	43407-AF	Bolt, Hex 3/8-16 x 3/4" Lg. * 43407	£3.91	Add
074	43175-AF	Hex Bolt, 1/4-20 x 1/2" * 43175	£4.15	Add
075	43343-AF	PIN COTTER	£4.20	Add
076	23353-AF	HITCH PIN	£19.20	Add
077	23368-AF	Tube, Hitch Spacer 23368	£8.18	Add
078	43737-AF	Hopper Rope 43737	£5.99	Add
079	44006-AF	WASHER	£5.01	Add
080	712-0291	LOCK-NUT	£2.77	Add
081	43601-AF	WASHER	£8.99	Add
082	44692-AF	Bolt, Hex 5/16-18 x 1/2" Lg. 44692	£4.05	Add
083	23845-AF	PANEL-LH SIDE CUB BEIGE 23845	£23.39	Add
084	23846-AF	SIDE PANEL CART EXTENSION RH 23846	£55.92	Add
085	44904-AF	STRAP:LIFT HANDLE SUPPORT 44904	£36.59	Add
086	44695-AF	Washer, Bowed 44695	£4.05	Add
087	44911-AF	SPACER	£4.12	Add
088	46219-AF	SPACER	£11.10	Add
089	23890-AF	TONGUE BRACKET	N/A	POA
090	45088-AF	WHEEL BEARING	£12.03	Add
091	23336-AF	Washer, Special 23336	£4.88	Add
092	R19212016-AF	WASHER 21/32X1-1/4X16 GA	£3.87	Add
