Parts list

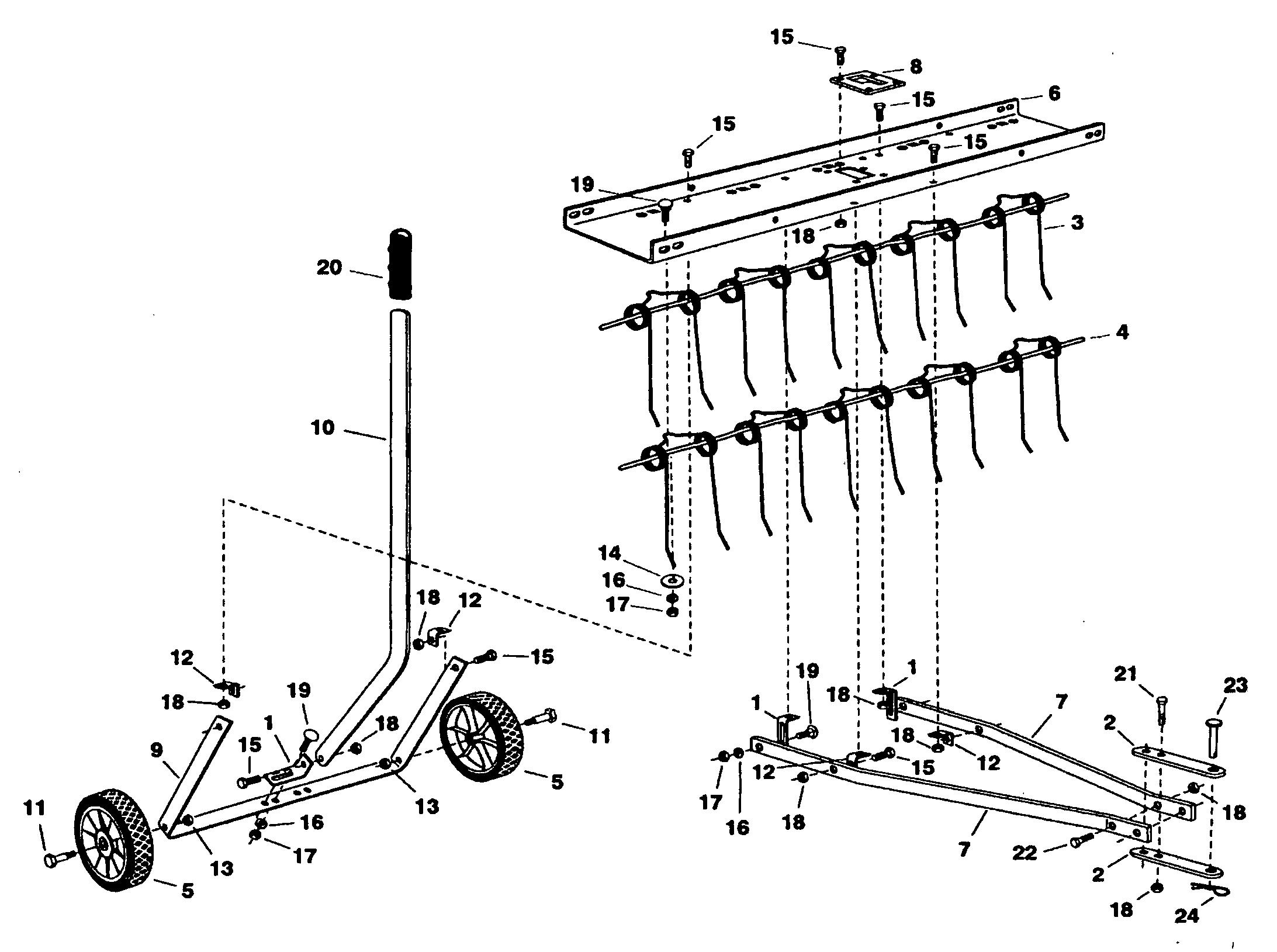

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
24627-AF
|
TINE SHIELD (48")
|
£84.87
|
Add
|
|
|
24627-AF
|
TINE SHIELD (48")
|
£84.87
|
Add
|
|
|
47634-AF
|
OWNER'S MANUAL
|
N/A
|
POA
|
|
001
|
23442-AF
|
BRACKET HITCH ARM MOUNT
|
£21.43
|
Add
|
|
002
|
23981-AF
|
HITCH BRACKET
|
£9.80
|
Add
|
|
003
|
43783-AF
|
SPRING TINE
|
£14.01
|
Add
|
|
003
|
43783-AF
|
SPRING TINE
|
£14.01
|
Add
|
|
004
|
47633-AF
|
SPRING ALIGNMENT WIRE
|
£4.07
|
Add
|
|
005
|
43021-AF
|
WHEEL ASSY
|
£35.83
|
Add
|
|
006
|
24593-AF
|
TINE SHIELD (40")
|
£78.42
|
Add
|
|
006
|
24593-AF
|
TINE SHIELD (40")
|
£78.42
|
Add
|
|
007
|
23914-AF
|
Hitch Mount Arm 23914
|
£35.73
|
Add
|
|
008
|
24594-AF
|
PLATE AF-24594
|
£18.41
|
Add
|
|
009
|
24595-AF
|
AXLE BRACKET AF-24595
|
£34.56
|
Add
|
|
010
|
24596-AF
|
LIFT HANDLE
|
£31.06
|
Add
|
|
011
|
43029-AF
|
BOLT. SHOULDER
|
£12.88
|
Add
|
|
012
|
23826-AF
|
Bracket, Angle
|
£8.03
|
Add
|
|
013
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
014
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
014
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
015
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
016
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
016
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
017
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
017
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
018
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
019
|
44326-AF
|
BOLT, CARR 5/16-18x1" PLTD GR5 AF-44326
|
£3.49
|
Add
|
|
019
|
44326-AF
|
BOLT, CARR 5/16-18x1" PLTD GR5 AF-44326
|
£3.49
|
Add
|
|
020
|
43943-AF
|
Handle Grip 43943
|
£8.46
|
Add
|
|
021
|
44180-AF
|
BOLT HEX HEAD
|
£4.92
|
Add
|
|
022
|
43840-AF
|
HEX BOLT
|
£3.49
|
Add
|
|
023
|
47623-AF
|
HITCH PIN
|
£3.56
|
Add
|
|
024
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
