Parts list

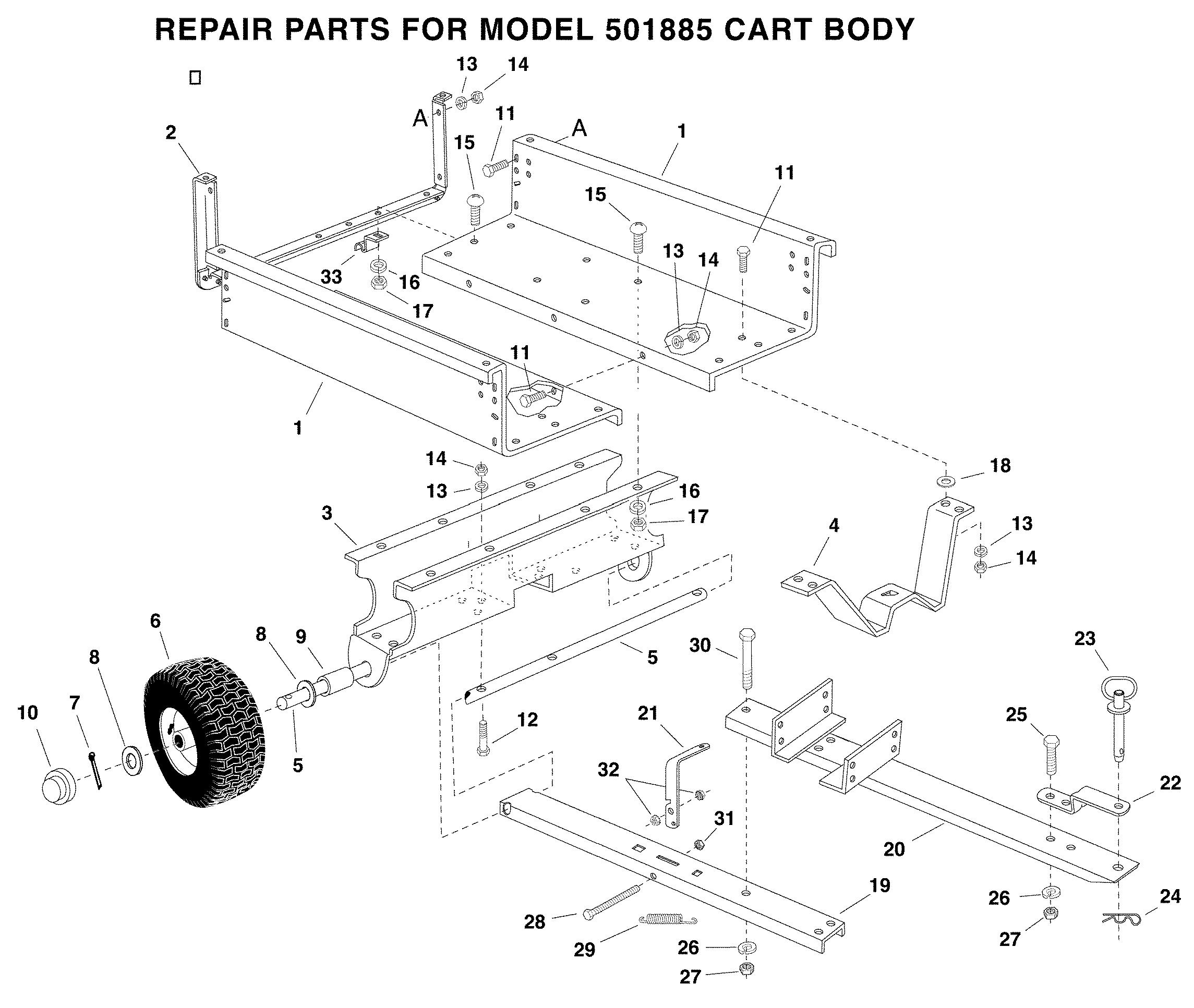

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref |
No |
Description |
Price |
|
001
|
23985-AF
|
Cart Body
|
£171.98
|
Add
|
002
|
62458-AF
|
Tailgate Reinforcement Bracket 62458
|
£98.48
|
Add
|
003
|
23507-AF
|
Wheel Support 23507
|
£240.05
|
Add
|
004
|
24497-AF
|
LATCH STAND
|
£23.24
|
Add
|
005
|
23488-AF
|
Axle, Wheel 1" Dia. 23488
|
£125.17
|
Add
|
006
|
46272-AF
|
WHEEL
|
£146.07
|
Add
|
007
|
43093-AF
|
COTTER PIN
|
£3.11
|
Add
|
008
|
43601-AF
|
WASHER
|
£8.99
|
Add
|
009
|
44678-AF
|
Spacer (45-0351) 44678
|
£14.07
|
Add
|
010
|
731-0484A
|
HUB CAP
|
£5.05
|
Add
|
011
|
43866-AF
|
Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866
|
£3.48
|
Add
|
012
|
1509-69-AF
|
HEX BOLT, 1/4-20 X 1-3/4" LG.
|
£2.77
|
Add
|
013
|
43177-AF
|
Washer, Lock 1/4" I.D.* 43177
|
£3.08
|
Add
|
014
|
43178-AF
|
Hex Nut, 1/4-20 Thread
|
£3.37
|
Add
|
015
|
43814-AF
|
SLOTTED TRUSS HEADBOLT(5/16-18x3/4)
|
£3.11
|
Add
|
016
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
017
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
018
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
019
|
63917-AF
|
Tongue Weldment Ass'y. (Rear)
|
£249.23
|
Add
|
020
|
63155-AF
|
Tongue Weldment Ass'y. (Front)
|
£209.00
|
Add
|
021
|
24614-AF
|
Latch Lock Lever
|
N/A
|
POA
|
022
|
23475-AF
|
HITCH BRACKET HD
|
£33.80
|
Add
|
023
|
43884-AF
|
Hitch Pin 43884
|
£42.16
|
Add
|
024
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
025
|
43087-AF
|
Hex Bolt, 3/8-16 x 1-1/4" Long 43087
|
£4.58
|
Add
|
026
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
027
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
028
|
47407-AF
|
Hex Bolt, 5/16-18 x 3-3/4" * 47407
|
£4.20
|
Add
|
029
|
47408-AF
|
SPRING
|
£3.79
|
Add
|
030
|
43574-AF
|
Hex Bolt, 3/8-16 x 3"
|
N/A
|
POA
|
031
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
032
|
46980-AF
|
NUT
|
£3.41
|
Add
|
033
|
23838-AF
|
Door Support 23838
|
£20.42
|
Add
|
