AGR08_0017

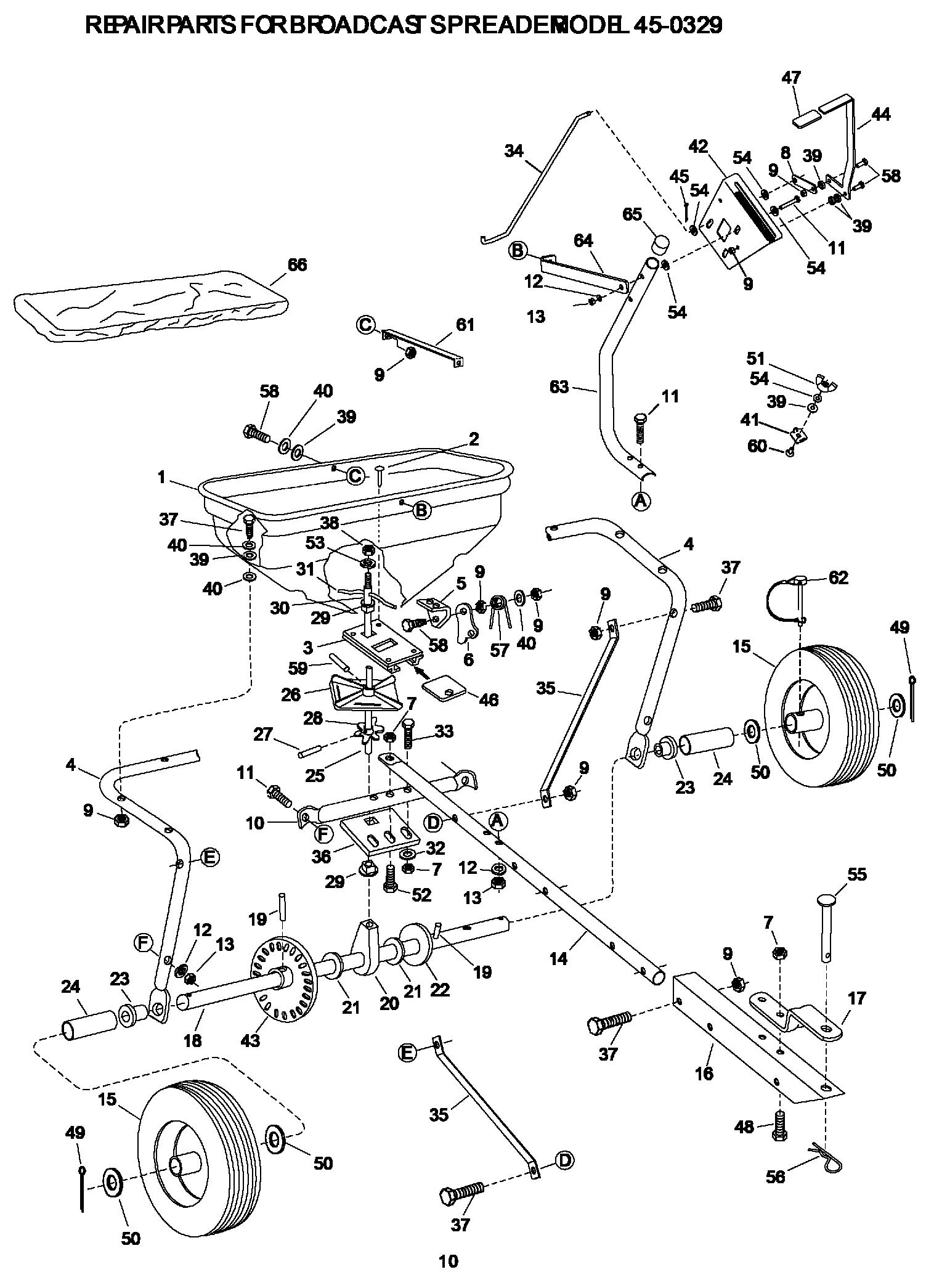

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

AGR08_0017

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
48512 Owner's Manual N/A POA
001 44480-AF Hopper 44480 £277.26 Add
002 43882-AF Rivet, Stainless 43882 £4.85 Add
003 62482-AF ASSY GUIDE CLOSURE £57.27 Add
004 444621 Tube, Frame 44462 N/A POA
005 23753-AF SLIDE GATE ANGLE BRACKET £3.62 Add
006 23758-AF SLIDE GATE BRACKET £3.87 Add
007 43082-AF HEX LOCK NUT £4.12 Add
008 24857 Flow Control Link N/A POA
009 712-0107 NO LONGER AVAILABLE N/A POA
010 43808-AF Tube, Crossover 43808 £57.98 Add
011 43084-AF BOLT £2.56 Add
012 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
013 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
014 48864 Tube, Hitch N/A POA
015 48511 WHEEL 15X6-3/4 (GREY) £165.75 Add
016 25080 Bracket, Hitch Extension N/A POA
017 23014-AF HITCH BRACKET £31.67 Add
018 24914 Shaft, Axle N/A POA
019 43851-AF ROLL PIN £13.84 Add
020 43871-AF Bushing, Axle Shaft 43871 £22.95 Add
021 1540-032 NO LONGER AVAILABLE N/A POA
022 1540-162-AF Washer, Flat 1/2" 1540-162 £6.62 Add
023 47615 BEARING FLANGE £21.89 Add
024 47683 SPACER TUBE £4.11 Add
025 23524 Shaft, Sprocket (OBSOLETE) N/A POA
026 04367 SPREADER PLATE £61.33 Add
027 43850-AF ROLL PIN £6.78 Add
028 44468-AF SPROCKET 6T £6.85 Add
029 44285-AF BUSHING DELRIN £5.63 Add
030 23766-AF SLEEVE AGITATOR (OBSOLETE) (OBSOLETE) N/A POA
031 43878-AF WIRE AGITATOR £14.86 Add
032 736-0692 Flat Washer, 3/8" 43070 £3.20 Add
033 41576-AF Bolt, Hex 3/8-16 x 1-3/4" Lg.* 41576 £4.05 Add
034 48586 Rod, Flow Control N/A POA
035 23525-AF Brace, Hitch 23525 £38.89 Add
036 23762-AF Shaft Support Plate 23762 £11.15 Add
037 710-0136 Bolt, Hex 1/4-20 x 1-3/4" 1509-069 £3.58 Add
038 43015 Hex nut, 3/8-16 * N/A POA
039 1543-69-AF Washer, Nylon 1543-069 N/A POA
040 43088-AF FLAT WASHER £3.11 Add
041 24858-AF STOP (ADJUSTABLE) £3.49 Add
042 24915 Bracket, Flow Control Mount N/A POA
043 62474-AF ASSY GEAR £87.01 Add
044 25188A1 Flow Control Arm 24917 N/A POA
045 44101-AF Cotter Pin 3/32" x 3/4" Lg.* 44101 £3.91 Add
046 23533-AF PLATE CLOSURE £15.33 Add
047 43848-AF Grip, Flow Control Arm 43848 £5.99 Add
048 43407-AF Bolt, Hex 3/8-16 x 3/4" Lg. * 43407 £3.91 Add
049 43093-AF COTTER PIN £3.11 Add
050 43009-AF WASHER1-5/8 INCH O D X 25/32 INCH ID £5.26 Add
051 47141-AF NUT NYLON WING 1/4-20 NU34 £3.49 Add
052 43054-AF Bolt, Hex 3/8-16 x 2" Lg. * 43054 £5.79 Add
053 736-0169 L. WASHER £2.89 Add
054 R19111116-AF WASHER £3.76 Add
055 47623 Hitch Pin N/A POA
056 43343-AF PIN COTTER £4.20 Add
057 44566-AF SPRING TORSION £4.74 Add
058 43012-AF BOLT £3.32 Add
059 46055A1 Pin, Spring 1/8" Dia. x 1" Lg. 46055 N/A POA
060 44950-AF BOLT £3.62 Add
061 23697-AF Strap, Hopper 23697 £33.01 Add
062 48515 DRIVE PIN W/BAIL 1/4 X 2 £10.65 Add
063 48514 Flow Control Mounting Tube N/A POA
064 24916 Tube Support Strap N/A POA
065 44481-AF Cap, Vinyl 44481 £4.05 Add
066 43962 COVER, VINYL HOPPER £109.92 Add
