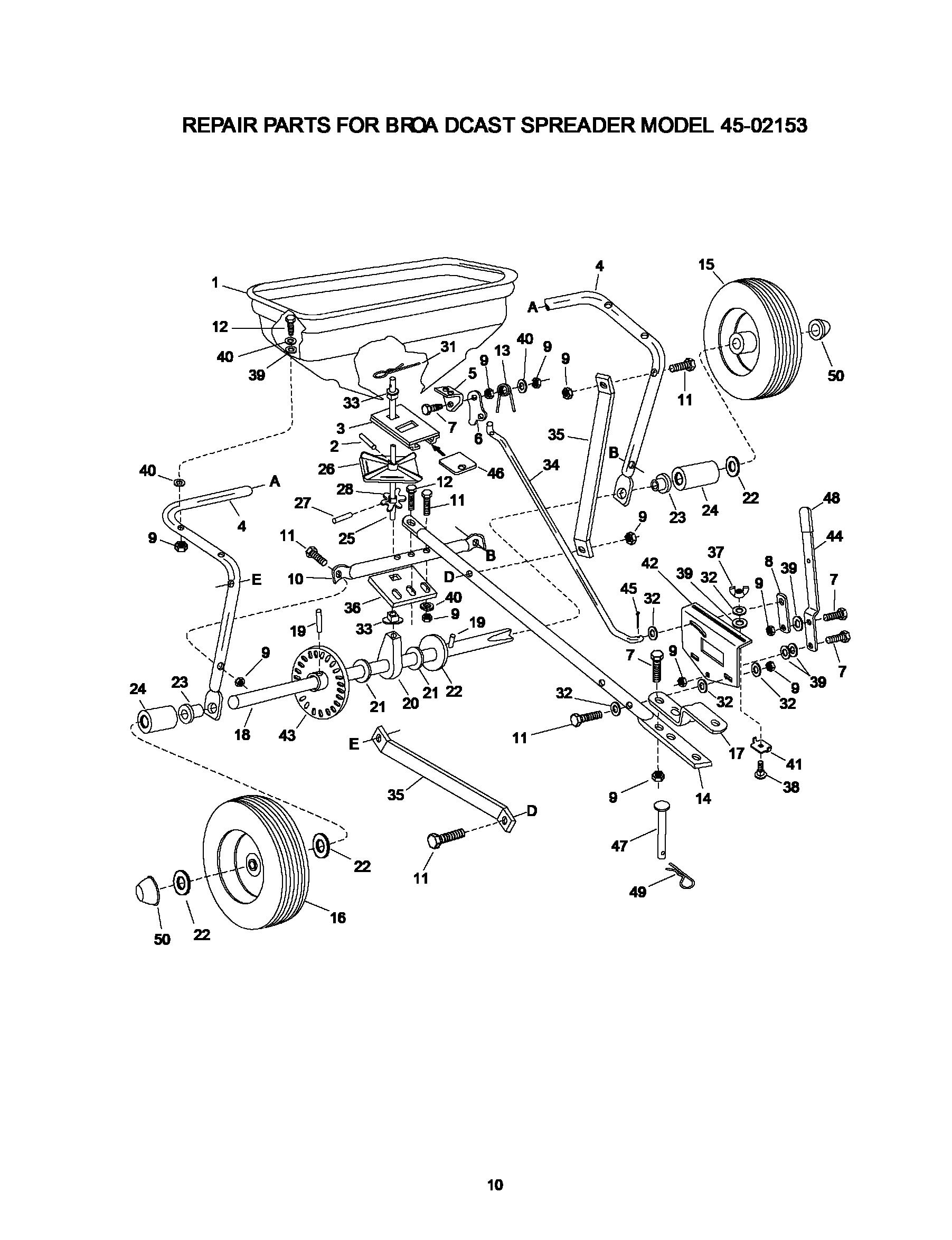

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
40471
|
Owner's Manual
|
N/A
|
POA
|
|
001
|
44624-AF
|
Hopper 44624
|
£225.10
|
Add
|
|
002
|
46055A1
|
Pin, Spring 1/8" Dia. x 1" Lg. 46055
|
N/A
|
POA
|
|
003
|
62482-AF
|
ASSY GUIDE CLOSURE
|
£57.27
|
Add
|
|
004
|
40469
|
Tube, Frame
|
N/A
|
POA
|
|
005
|
23753-AF
|
SLIDE GATE ANGLE BRACKET
|
£3.62
|
Add
|
|
006
|
23758-AF
|
SLIDE GATE BRACKET
|
£3.87
|
Add
|
|
007
|
43661-AF
|
HEX BOLT
|
£3.11
|
Add
|
|
008
|
24857
|
Flow Control Link
|
N/A
|
POA
|
|
009
|
47189-AF
|
Hex Nylock Nut 1/4" 47189
|
£3.91
|
Add
|
|
010
|
44591-AF
|
Tube, Crossover 44591
|
£24.35
|
Add
|
|
011
|
43648-AF
|
Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648
|
£4.58
|
Add
|
|
012
|
1509-69-AF
|
HEX BOLT, 1/4-20 X 1-3/4" LG.
|
£2.77
|
Add
|
|
013
|
44566-AF
|
SPRING TORSION
|
£4.74
|
Add
|
|
014
|
44586-AF
|
Tube, Hitch 44586
|
£37.34
|
Add
|
|
015
|
48865-AF
|
DRIVE WHEEL
|
£76.62
|
Add
|
|
016
|
46503-AF
|
Wheel 46503
|
£73.71
|
Add
|
|
017
|
23687-AF
|
Hitch Bracket 23687
|
£33.95
|
Add
|
|
018
|
23781-AF
|
Shaft, Axle 23781
|
£20.67
|
Add
|
|
019
|
44665-AF
|
Pin, Spring 5/32" Dia. x 1-1/4" Lg. 44665
|
£4.05
|
Add
|
|
020
|
4467 2
|
Bushing, Axle Shaft
|
N/A
|
POA
|
|
021
|
44137-AF
|
Washer, Flat 1/2" I.D. 44137
|
£2.60
|
Add
|
|
022
|
R19171616-AF
|
WASHER 17/32X1X16GA
|
£3.76
|
Add
|
|
023
|
47963-AF
|
BEARING
|
£5.52
|
Add
|
|
024
|
46501-AF
|
Tube, Spacer 46501
|
£8.40
|
Add
|
|
025
|
25305-AF
|
Shaft, Sprocket 25305
|
N/A
|
POA
|
|
026
|
04367
|
SPREADER PLATE
|
£61.33
|
Add
|
|
027
|
43850-AF
|
ROLL PIN
|
£6.78
|
Add
|
|
028
|
44468-AF
|
SPROCKET 6T
|
£6.85
|
Add
|
|
029
|
C-9M573 2
|
Pop Rivet (not shown)
|
N/A
|
POA
|
|
031
|
48934-AF
|
HAIRPIN
|
£3.49
|
Add
|
|
032
|
R19111116-AF
|
WASHER
|
£3.76
|
Add
|
|
033
|
44285-AF
|
BUSHING DELRIN
|
£5.63
|
Add
|
|
034
|
44469-AF
|
Rod, Flow Control 44469
|
£28.51
|
Add
|
|
035
|
23525-AF
|
Brace, Hitch 23525
|
£38.89
|
Add
|
|
036
|
23780
|
Support, Shaft
|
N/A
|
POA
|
|
037
|
47141-AF
|
NUT NYLON WING 1/4-20 NU34
|
£3.49
|
Add
|
|
038
|
44950-AF
|
BOLT
|
£3.62
|
Add
|
|
039
|
1543-69-AF
|
Washer, Nylon 1543-069
|
N/A
|
POA
|
|
040
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
041
|
24858-AF
|
STOP (ADJUSTABLE)
|
£3.49
|
Add
|
|
042
|
24855-AF
|
Bracket, Flow Control Mount 24855
|
£19.79
|
Add
|
|
043
|
62798-AF
|
GEAR ASSY
|
£98.33
|
Add
|
|
044
|
24859-AF
|
Flow Control Arm 24859
|
£14.93
|
Add
|
|
045
|
44101-AF
|
Cotter Pin 3/32" x 3/4" Lg.* 44101
|
£3.91
|
Add
|
|
046
|
23533-AF
|
PLATE CLOSURE
|
£15.33
|
Add
|
|
047
|
47623
|
Hitch Pin
|
N/A
|
POA
|
|
048
|
43848-AF
|
Grip, Flow Control Arm 43848
|
£5.99
|
Add
|
|
049
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
|
050
|
44663-AF
|
CAP NUT
|
£4.31
|
Add
|
