Complete Assy

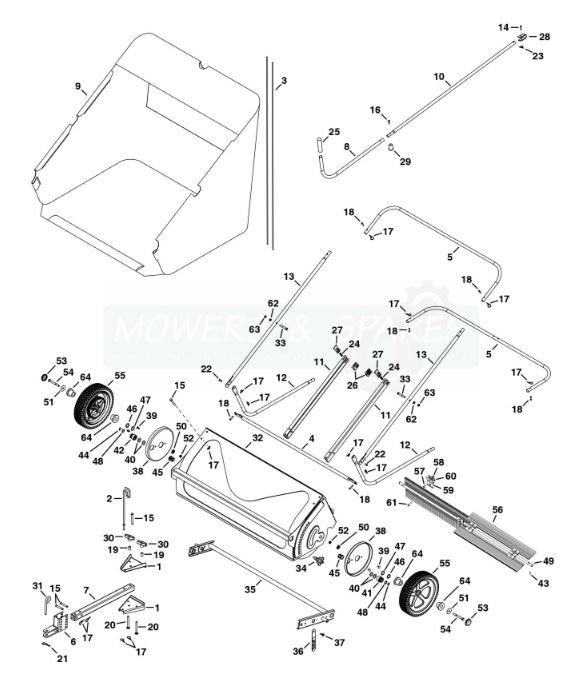

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Complete Assy

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
000 69209-AF GEARBOX ( NOT SUITABLE FOR THIS MODEL ) £50.86 Add
000A 42094-AF SNAP RING £1.74 Add
005 42649-AF REAR HOPPER TUBE £66.77 Add
009 42904-AF HOPPER BAG £242.68 Add
011 27424-AF BAG ARM £21.00 Add
015 HA23636-AF PIN, CLEVIS £5.08 Add
016 43978-AF Bolt, Curved 1.4-20 x 1" 43978 £4.05 Add
017 43055-AF COTTER PIN £6.04 Add
018 48365-AF PIN £4.92 Add
021 43343-AF PIN COTTER £4.20 Add
022 48366-AF PIN £8.53 Add
023 HA3090-AF HAIRPIN COTTER £4.55 Add
024 41036-AF COMPRESSION SPRING £1.83 Add
025 7071-AF HANDLE C GRIP £5.86 Add
026 27426-AF PIVOT ROD SUPPORT BRACKET £3.36 Add
028 23878-AF U-CLAMP £25.20 Add
030 43720-AF KNOB (RED) £7.83 Add
031 23353-AF HITCH PIN £19.20 Add
033 43432-AF Bolt, Hex 3/8-16 x 2-1/2" Lg. 43432 £4.05 Add
034 40891-AF HEIGHT ADJUSTMENT KNOB £31.92 Add
037 710-0896 SCREW WITH WASHER ST £4.97 Add
040 40001-AF Washer, Shim 1-1/8" x .594" x .025" 44007-AF £3.58 Add
041 48651-AF Pinion, L.H. 11 T. £14.60 Add
042 48652-AF PINION, R.H. 11 T. £14.60 Add
043 47046-AF DOWELL PIN 1/4 X 3/4 £3.56 Add
046 44008-AF WASHER £3.24 Add
049 40722-AF BRUSH SHAFT 42 £61.50 Add
051 141-AF Washer, Flat 1-1/2" x .375" x .062" 141 £3.91 Add
052 1038-AF Nut, Nylock 3/8-24 Thread 1038 £3.48 Add
053 41017-AF WHEEL CAP £2.87 Add
054 44961-AF Bolt, Hex 3/8-24 x 3-1/4" Lg. 44961 £4.31 Add
055 40987-AF WHEEL £132.71 Add
056 46780-AF BRUSH 42" £25.59 Add
058 47189-AF Hex Nylock Nut 1/4" 47189 £3.91 Add
059 23580-AF BRUSH RETAINER 42-0197 £9.24 Add
060 23581-AF BRUSH RETAINER 42-0197 £5.45 Add
061 43661-AF HEX BOLT £3.11 Add
062 712-3008 NUT:JAM:3/8-16:GR5 £3.26 Add
064 45088-AF WHEEL BEARING £12.03 Add
