FG711_0100

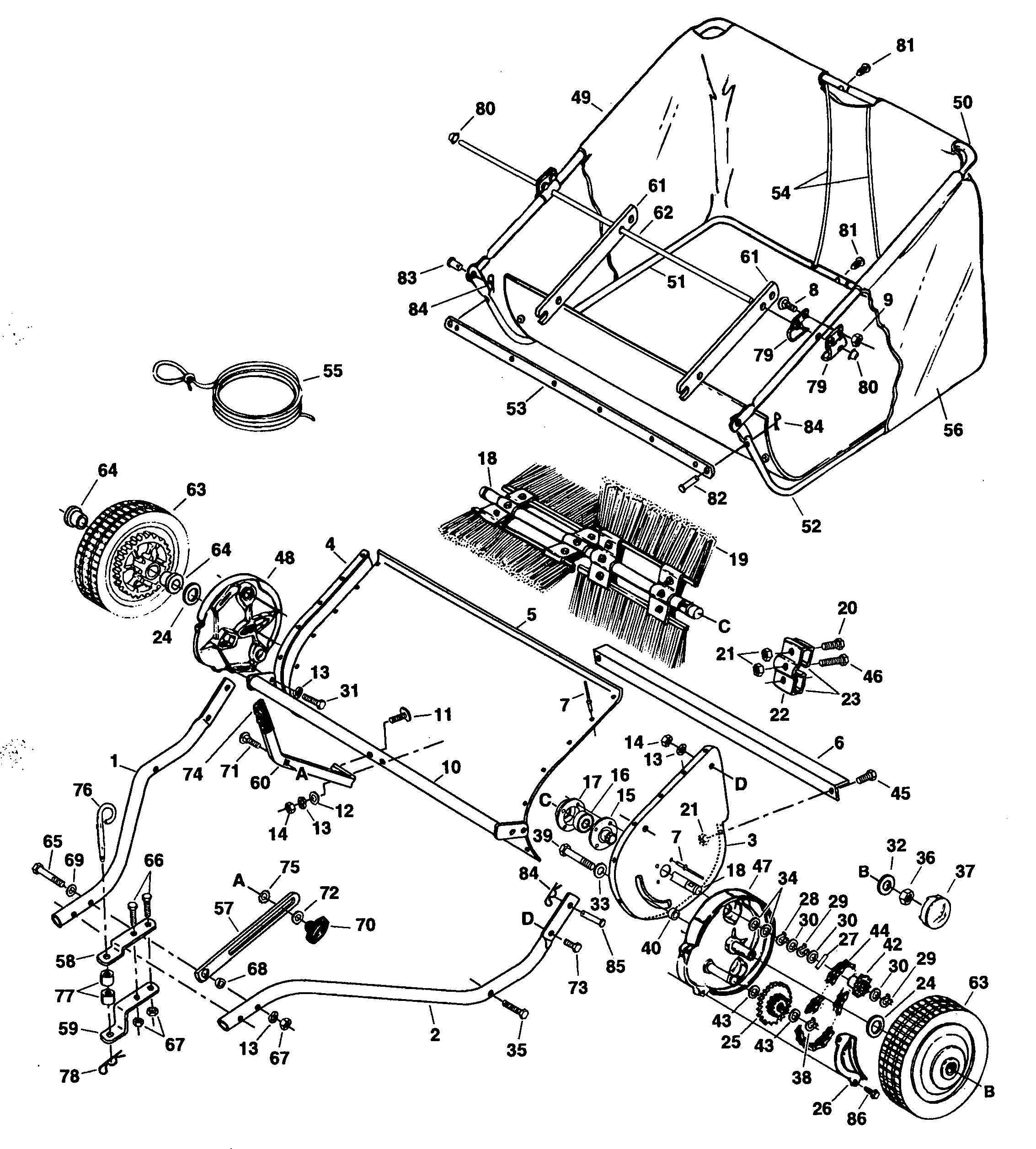

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG711_0100

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
47371-AF HITCH TUBE, L.H. £48.28 Add
47370-AF HITCH TUBE, R.H. N/A POA
24485-AF WRAPPER N/A POA
63777-AF HEIGHT ADJUSTMENT ASS'Y. N/A POA
47488-AF BRUSH £20.79 Add
23854-AF Brace, Rear Support 23854 £22.10 Add
23574-AF BRUSH SHAFT 23574 £64.68 Add
43966-AF RAHMENROHR OBEN RECHTS 43966 £44.77 Add
43967-AF RAHMENRECHTS OBEN LINKS 43967 £47.55 Add
43968-AF LOWER HOPPER TUBE RH £42.13 Add
23352-AF Strap, Bag Frame 23352 £28.38 Add
47373-AF ROD, HOPPER BAG PIVOT £19.79 Add
48553-AF BAG £119.22 Add
43969-AF LOWER HOPPER TUBE LH £44.74 Add
48554-AF OWNERS MANUAL N/A POA
001 47380-AF HITCH TUBE, R.H. N/A POA
002 47379-AF HITCH TUBE, L.H. N/A POA
003 24195-AF END PLATE, L.H. £45.80 Add
004 24196-AF END PLATE, R.H. £45.80 Add
005 24488-AF WRAPPER N/A POA
006 24526-AF BRACE, REAR SUPPORT N/A POA
007 C-9M5732 Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
008 43080-AF CARRIAGE BOLT £3.49 Add
009 46980-AF NUT £3.41 Add
010 63782-AF HEIGHT ADJUSTMENT ASS'Y. N/A POA
011 44947-AF Bolt, Curved Head 5/16-18 x 1-5/8" 44947 £4.05 Add
012 44695-AF Washer, Bowed 44695 £4.05 Add
013 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
014 43083-AF HEX NUT £3.32 Add
015 62489-AF LAGERSCHALE AUßEN 62489 £42.99 Add
016 44232-AF BALL BEARING £35.66 Add
017 AF-1629-56 Retainer, Dust Cover 1629-56 £26.36 Add
018 23723-AF SHAFT, BRUSH (30") AF-23723 £97.02 Add
019 47487-AF BRUSH £18.70 Add
019 48557-AF BRUSH 42" SWEEPER £46.69 Add
020 43012-AF BOLT £3.32 Add
021 712-0291 LOCK-NUT £2.77 Add
022 23580-AF BRUSH RETAINER 42-0197 £9.24 Add
023 23581-AF BRUSH RETAINER 42-0197 £5.45 Add
024 44008-AF WASHER £3.24 Add
025 62490-AF GEAR SPROCKET SUB ASSY £72.48 Add
026 23573-AF DESTPROOF CAP 23573 £8.85 Add
027 47046-AF DOWELL PIN 1/4 X 3/4 £3.56 Add
028 43655-AF SPANNRING.75" 43655 £4.15 Add
029 AF-1650-21 RETAINING RING £2.61 Add
030 40001-AF Washer, Shim 1-1/8" x .594" x .025" 44007-AF £3.58 Add
031 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
032 141-AF Washer, Flat 1-1/2" x .375" x .062" 141 £3.91 Add
033 43070-AF Washer, 3/8" £3.91 Add
034 736-0287 FLAT WASHER .78" X 1.25" X .062" £7.92 Add
035 43084-AF BOLT £2.56 Add
036 1038-AF Nut, Nylock 3/8-24 Thread 1038 £3.48 Add
037 2674-32-AF Hub Cap 2674-32 N/A POA
038 43894-AF STOPPING RING 43894 £3.76 Add
039 43932-AF BOLT, ROUND HEAD 43932 £5.18 Add
040 23400-AF SPACER £5.85 Add
041 43890-AF SPROCKET 43890 £26.12 Add
042 43889-AF SPROCKET LH £24.33 Add
043 44137-AF Washer, Flat 1/2" I.D. 44137 £2.60 Add
044 44542-AF CHAIN £15.47 Add
045 43175-AF Hex Bolt, 1/4-20 x 1/2" * 43175 £4.15 Add
046 43661-AF HEX BOLT £3.11 Add
047 62791-AF RADGEHÄUSE LINKS 62791 £99.19 Add
048 62792-AF RADGEHÄUSE 62792 £57.96 Add
049 44310-AF TUBE, HOPPER UPPER R.H.(32HI) AF-44310 £44.04 Add
050 44309-AF TUBE, HOPPER UPPER L.H.(32HI) AF-44309 £41.50 Add
051 43930-AF TUBE, HOPPER LOWER R.H. 32" AF-43930 £43.76 Add
052 43929-AF LOWER HOPPER TUBE RIGHT AF-43929 £46.50 Add
053 23351-AF STRAP, BAG FRAME 32 IN AF-23351 £25.88 Add
054 43938-AF ROD, HOPPER SUPPORT £12.19 Add
055 43737-AF Hopper Rope 43737 £5.99 Add
056 48552-AF HOPPER BAG, 32" £215.33 Add
057 24191-AF STRAP, HEIGHT ADJUSTMENT £14.43 Add
058 23687-AF Hitch Bracket 23687 £33.95 Add
059 23014-AF HITCH BRACKET £31.67 Add
060 24193-AF HANDLE, HEIGHT ADJUSTMENT £28.71 Add
061 24487-AF BAG-ARM AF-24487 £18.60 Add
062 47382-AF ROD, HOPPER BAG PIVOT N/A POA
063 40987-AF WHEEL £132.71 Add
063 44985-AF WHEEL ASSY. FOR 38" SWEEPER £116.26 Add
064 45088-AF WHEEL BEARING £12.03 Add
065 46782-AF BOLT £3.41 Add
066 43224-AF BOLT £5.85 Add
067 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
068 46847-AF SLEEVE AF-46847 £3.85 Add
069 R19111116-AF WASHER £3.76 Add
070 43720-AF KNOB (RED) £7.83 Add
071 43080-AF CARRIAGE BOLT £3.49 Add
072 43081-AF FLAT WASHER £3.49 Add
073 43063-AF BOLT £4.12 Add
074 43943-AF Handle Grip 43943 £8.46 Add
075 44732-AF TOOTH LOCK WASHER £3.49 Add
076 23353-AF HITCH PIN £19.20 Add
077 23368-AF Tube, Hitch Spacer 23368 £8.18 Add
078 43343-AF PIN COTTER £4.20 Add
079 23331-AF THROTTLE CABLE CLIP 23331 £12.01 Add
080 44917-AF PALNUT (RED) £3.76 Add
081 48402-AF PLUG £6.01 Add
082 48365-AF PIN £4.92 Add
083 48366-AF PIN £8.53 Add
084 43055-AF COTTER PIN £6.04 Add
085 44044-AF CLEVIS PIN 3/8" X 3/4" LG. N/A POA
086 49102-AF SCREW, #12 X 1/2" HEX HEAD N/A POA
087 46780-AF BRUSH 42" £25.59 Add
