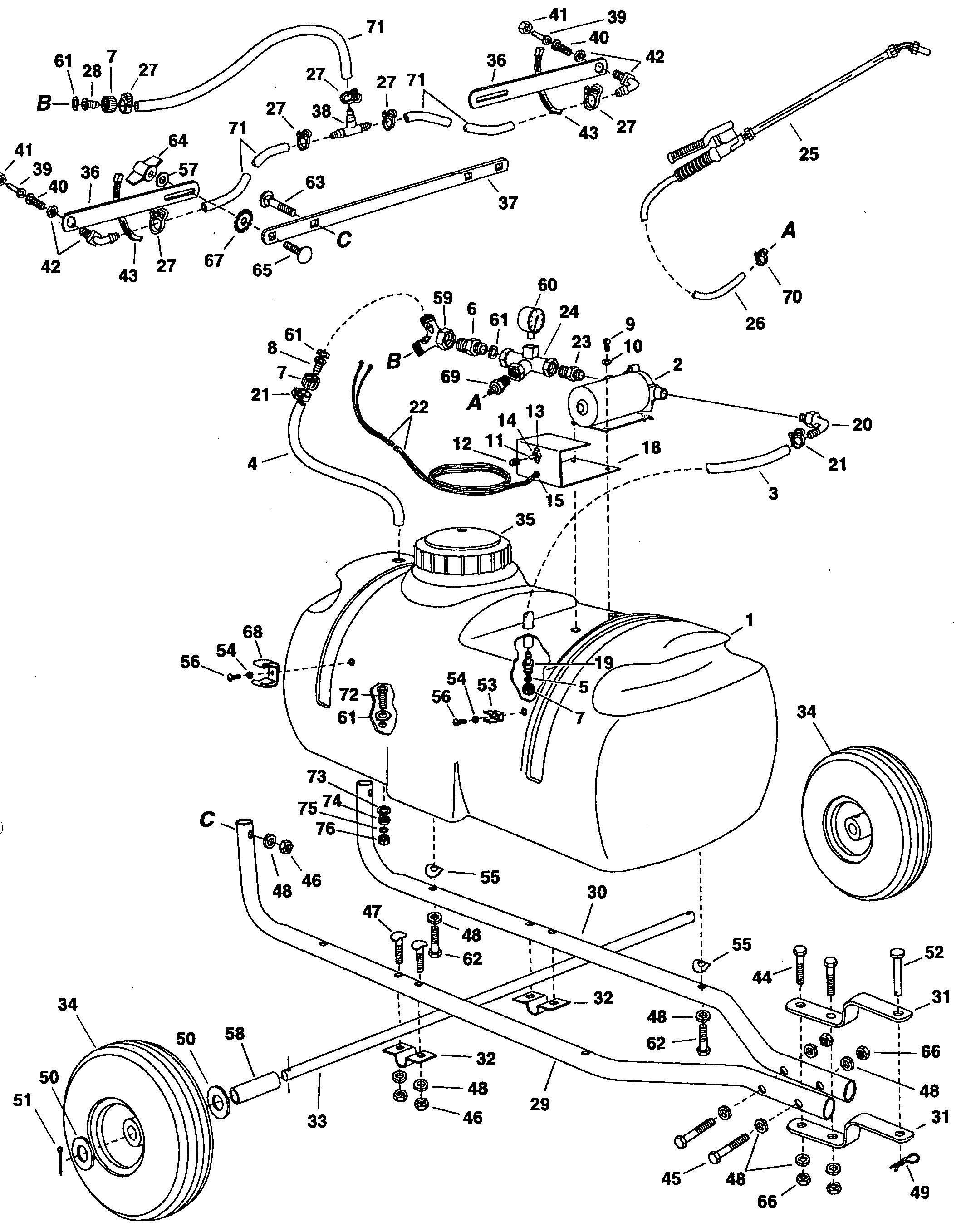

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
47645-AF
|
OWNERS MANUAL
|
N/A
|
POA
|
|
000
|
48719-AF
|
DRAIN BUNG
|
£5.68
|
Add
|
|
001
|
46283-AF
|
Tank (25 Gal.) 46283
|
£528.66
|
Add
|
|
002
|
45015-AF
|
PUMP AND MOTOR
|
£421.85
|
Add
|
|
003
|
46278-AF
|
HOSE
|
£15.33
|
Add
|
|
004
|
45021-AF
|
HOSE
|
£12.61
|
Add
|
|
005
|
45024-AF
|
CAP STRAINER
|
£4.12
|
Add
|
|
006
|
45031-AF
|
ADAPTOR (RED)
|
£4.58
|
Add
|
|
007
|
45032-AF
|
NUT SWIVEL
|
£3.87
|
Add
|
|
008
|
45033-AF
|
HOSE BARB 1/2"
|
£3.62
|
Add
|
|
009
|
45069-AF
|
Screw, Ph. Pan Hd. 10-24 x 1" Lg. 45069
|
£4.05
|
Add
|
|
010
|
43910-AF
|
Washer, Flat #10 SAE 43910
|
£3.19
|
Add
|
|
011
|
45084-AF
|
Switch, On - Off 45084
|
£25.40
|
Add
|
|
012
|
45082-AF
|
Boot, Rubber Switch 45082
|
£13.83
|
Add
|
|
013
|
45080-AF
|
PLATE, ON - OFF SWITCH
|
£4.05
|
Add
|
|
014
|
45048-AF
|
Nut, Hex 15/32-32 Thd. 45048
|
£4.05
|
Add
|
|
015
|
45087-AF
|
Bushing, Strain Relief 45087
|
£4.05
|
Add
|
|
016
|
45085-AF
|
Terminal, .25 Male Tab (not shown) 45085
|
£5.68
|
Add
|
|
017
|
45086-AF
|
Terminal, .25 Female Tab (not shown) 45086
|
£6.20
|
Add
|
|
018
|
23889-AF
|
Bracket, Switch Mounting 23889
|
£19.19
|
Add
|
|
019
|
46276-AF
|
Adapter, 3/4" GH x 1/2" Barb 46276
|
£5.68
|
Add
|
|
020
|
46277-AF
|
Elbow, 3/8 NPT x 1/2" Barb 46277
|
£5.79
|
Add
|
|
021
|
45025-AF
|
CLAMP
|
£5.45
|
Add
|
|
022
|
45018-AF
|
CONNECTOR W/WIRE
|
£71.79
|
Add
|
|
023
|
45049-AF
|
NIPPLE
|
£4.74
|
Add
|
|
024
|
45050-AF
|
TEE,1/2 x 1/2 x 1/2 (1/4"PORT) AF-45050
|
£32.90
|
Add
|
|
025
|
47406-AF
|
SPRAY GUN
|
£56.06
|
Add
|
|
026
|
47393-AF
|
HOSE 1/4
|
£53.06
|
Add
|
|
027
|
45026-AF
|
CLAMP (RED)
|
£5.85
|
Add
|
|
028
|
45034-AF
|
Hose Barb, 3/8" 45034
|
£4.05
|
Add
|
|
029
|
47624-AF
|
HITCH TUBE, R.H. AF-47624 (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
030
|
47625-AF
|
Hitch Tube, L.H. 47625 (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
031
|
23014-AF
|
HITCH BRACKET
|
£31.67
|
Add
|
|
032
|
23917-AF
|
Clamp, 3/4" Axle 23917
|
£4.05
|
Add
|
|
033
|
24615-AF
|
AXLE, 3/4"
|
£38.94
|
Add
|
|
034
|
44456-AF
|
WHEEL ASSY (OBSOLETE)
|
N/A
|
POA
|
|
035
|
46700-AF
|
LID FOR SPRAYERS
|
£37.30
|
Add
|
|
036
|
24122-AF
|
BOOM BAR
|
£25.27
|
Add
|
|
037
|
24585-AF
|
BRACKET BOOM MOUNT
|
£12.33
|
Add
|
|
038
|
47394-AF
|
TEE
|
£5.76
|
Add
|
|
039
|
45028-AF
|
NOZZLE FLOODJET
|
£8.19
|
Add
|
|
040
|
45029-AF
|
STRAINER SCREEN
|
£11.35
|
Add
|
|
041
|
45037-AF
|
NUT
|
£5.96
|
Add
|
|
042
|
47396-AF
|
ELBOW, PLASTIC 11/16" THD.
|
£8.11
|
Add
|
|
043
|
725-0157
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
044
|
43224-AF
|
BOLT
|
£5.85
|
Add
|
|
045
|
46782-AF
|
BOLT
|
£3.41
|
Add
|
|
046
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
047
|
44947-AF
|
Bolt, Curved Head 5/16-18 x 1-5/8" 44947
|
£4.05
|
Add
|
|
048
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
049
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
|
050
|
43009-AF
|
WASHER1-5/8 INCH O D X 25/32 INCH ID
|
£5.26
|
Add
|
|
051
|
43093-AF
|
COTTER PIN
|
£3.11
|
Add
|
|
052
|
47623-AF
|
HITCH PIN
|
£3.56
|
Add
|
|
053
|
45180-AF
|
Clip (Small), Spray Gun 45180
|
£20.21
|
Add
|
|
054
|
736-0722
|
Lock Washer, #10
|
£3.20
|
Add
|
|
055
|
44695-AF
|
Washer, Bowed 44695
|
£4.05
|
Add
|
|
056
|
45040-AF
|
BOLT
|
£3.62
|
Add
|
|
057
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
058
|
45151-AF
|
SPACER
|
£11.00
|
Add
|
|
059
|
45017-AF
|
Y VALVE
|
£30.93
|
Add
|
|
060
|
45071-AF
|
Gauge, Pressure 2" 100 PSI 45071
|
£58.88
|
Add
|
|
061
|
45072-AF
|
GASKET
|
£3.70
|
Add
|
|
062
|
48043-AF
|
BOLT, HEX 5/16-18 X 1-5/8" (OBSOLETE)
|
N/A
|
POA
|
|
063
|
44215-AF
|
Bolt, Carriage 5/16-18 x 1-3/4" 44215
|
£3.48
|
Add
|
|
064
|
712-0421
|
KNOB
|
£6.43
|
Add
|
|
065
|
43682-AF
|
BOLT, CARRIAGE
|
£3.11
|
Add
|
|
066
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
067
|
44732-AF
|
TOOTH LOCK WASHER
|
£3.49
|
Add
|
|
068
|
47397-AF
|
Clip (Large), Spray Gun 47397
|
£19.24
|
Add
|
|
069
|
47390-AF
|
ADAPTER
|
£4.35
|
Add
|
|
070
|
47405-AF
|
CLAMP
|
£7.85
|
Add
|
|
071
|
47392-AF
|
Hose, 3/8" ID (20" Lg.) 47392
|
£11.48
|
Add
|
|
072
|
47399-AF
|
Drain Body 47399
|
£8.85
|
Add
|
|
073
|
47398-AF
|
Washer, Nylon 47398
|
£4.35
|
Add
|
|
074
|
47402-AF
|
Nut, Nylon 11/16" Thd. 47402
|
£3.91
|
Add
|
|
075
|
47400-AF
|
O RING (OBSOLETE)
|
N/A
|
POA
|
|
076
|
47403-AF
|
CAP NYLON
|
£3.49
|
Add
|
